Rapid tooling helps you speed up the production of custom plastic pipe fittings. It uses advanced methods to simplify manufacturing and reduce delays. Techniques like injection molding and 3D printing enable quick manufacturing without compromising quality. These tools also allow you to create cost-effective solutions tailored to specific needs. Whether you’re developing prototypes or producing in bulk, rapid tooling ensures precision and efficiency.
Rapid tooling refers to a manufacturing approach that combines advanced technologies to create molds or tools quickly and efficiently. It is designed to meet the demands of modern industries that require faster production cycles and cost-effective solutions. Unlike traditional methods, rapid tooling focuses on speed and flexibility while maintaining functionality.
| Characteristic | Description |
|---|---|
| Molding Cycle | Short molding cycle, allowing for rapid production. |
| Cost | Low molding cost, making it economical for small batches. |
| Process | Simple process that is easy to promote and implement. |
| Functional Demands | Can fulfill specific functional requirements while maintaining economic benefits. |
| Applications | Used across various industries such as automotive, aerospace, and medical. |
| Advantages | Reduces production time and cost, quick replication of tools. |
| Disadvantages | Less precision and reduced product lifespan compared to conventional tooling. |
This method is particularly useful for small-batch production or prototyping. It allows you to test designs and make adjustments without committing to expensive, long-term tooling investments. By using rapid tooling technology, you can achieve faster results without sacrificing quality.
Rapid tooling stands apart from traditional tooling in several key ways. While traditional methods rely on time-intensive processes, rapid tooling uses advanced techniques like additive manufacturing (AM) and CNC machining to speed up production. Here are some notable differences:
However, rapid tooling may involve post-processing steps that could slightly extend production time. Despite this, its ability to deliver quick and efficient results makes it a game-changer for industries requiring custom solutions.
Custom plastic pipe fittings often require unique designs and precise specifications. Rapid tooling technology provides the flexibility and speed needed to meet these demands. You can create molds tailored to specific requirements without the long wait times associated with traditional tooling. This is especially important when working on projects with tight deadlines or when you need to produce prototypes for testing.
The ability to produce complex designs in a single step is another advantage. For example, rapid tooling allows you to consolidate multiple components into one, reducing assembly time and improving overall efficiency. Additionally, the cost-effectiveness of this method makes it ideal for small-batch production, where traditional tooling might not be economically viable.
By adopting rapid tooling, you can stay ahead in a competitive market. It empowers you to deliver high-quality, custom solutions faster and more efficiently, ensuring customer satisfaction and project success.
Injection molding is one of the most efficient techniques for producing custom plastic pipe fittings. This method involves injecting molten plastic into a mold cavity, where it cools and solidifies into the desired shape. It is particularly effective for creating high-quality, repeatable parts at scale. You can rely on injection molding to deliver consistent results, whether for small-batch production or large-scale manufacturing.
The efficiency of injection molding lies in its ability to produce parts quickly and accurately. For example, lead times can start as low as five business days, thanks to fast quote responses and design-for-manufacturing (DFM) feedback. You can choose from a wide range of materials, including custom-sourced plastics, to meet specific project requirements. Additionally, advanced machines, such as single and multi-cavity molds, allow for flexibility in production. Inspection options like FAI and PPAP ensure that every part meets strict quality standards.
| Metric | Details |
|---|---|
| Lead Time | Starts at 5 business days, including fast quote responses with DFM feedback. |
| Materials | Most plastics, including custom sourcing and matching. |
| Machines Available | Single, multi-cavity, and family molds; 50 to 3,700+ press tonnage. |
| Mold Cavity Tolerances | +/- 0.005" when machining the mold and an additional +/- 0.002" per inch for shrink rate. |
| Part to Part Repeatability | +/- 0.004" or less. |
| Available Mold Types | Steel and aluminum; production grades range from Class 105 to Class 101. |
Injection molding also supports complex designs with tight tolerances. For example, mold cavity tolerances can reach +/- 0.005 inches, ensuring precision in every part. This makes it an ideal choice for custom plastic pipe fittings, where accuracy and durability are critical.
Additive manufacturing, commonly known as 3D printing, has revolutionized rapid tooling by enabling the creation of complex and customized tools with speed and precision. This technique builds parts layer by layer, allowing you to produce intricate designs that would be challenging or impossible with traditional methods. It is particularly useful for rapid prototyping and hybrid tooling, where flexibility and quick iterations are essential.
With additive manufacturing, you can accelerate product development and transition seamlessly from prototype to production. For instance, technologies like Mantle's 3D printing solutions deliver production-quality tooling with exceptional speed and durability. This approach allows you to test multiple design iterations quickly, ensuring that the final product meets all functional requirements.
Additive manufacturing also reduces material waste, making it a more sustainable option for creating custom plastic pipe fittings. By adopting this technique, you can achieve faster turnaround times while maintaining high-quality standards.
CNC machining is a cornerstone of rapid tooling, offering unmatched precision and versatility. This technique uses computer-aided design (CAD) software to create detailed digital models, which are then translated into precise instructions for the CNC machine. You can rely on CNC machining to produce high-quality molds with consistent dimensions, ensuring that every part meets strict specifications.
Dimensional accuracy is a key advantage of CNC machining. Tools like calipers and micrometers measure both external and internal dimensions with high precision, ensuring that the final molds adhere to exact tolerances. For example, the FROGMill™ CNC machine achieves an impressive accuracy of +/-0.05 mm, making it ideal for industries that demand strict quality standards.
| Technique | Description | Applications |
|---|---|---|
| CNC Machining | High precision and versatility with various materials. | Prototyping, low-volume production |
| Additive Manufacturing | Enables creation of complex and customized tools quickly. | Rapid prototyping, hybrid tooling |
CNC machining also supports a wide range of materials, allowing you to choose the best option for your project. Whether you need steel molds for durability or aluminum molds for faster production, CNC machining provides the flexibility to meet your needs. This makes it an essential technique for producing custom plastic pipe fittings with precision and efficiency.
Conformal cooling is a game-changing technique in rapid tooling that significantly reduces cycle times during the manufacturing process. Unlike traditional cooling methods, which use straight-line channels, conformal cooling employs channels that follow the shape of the mold. This design ensures even heat distribution and faster cooling, which directly impacts production efficiency.
By using conformal cooling, you can achieve remarkable reductions in cooling times. For instance:
- Optimized conformal cooling channels (CCCs) have shown cooling time reductions of 15–30% in predictions and up to 70% in real-world measurements.
- On average, cycle times decrease by approximately 30%, with some cases reaching reductions as high as 70%. These results are particularly noticeable when standing core features are included in the design.
The faster cooling cycles offered by this method allow you to produce more parts in less time. This efficiency is especially beneficial for high-volume production runs or when working with complex molds. For example, in injection molding, conformal cooling ensures that the molten material solidifies evenly, reducing the risk of defects like warping or shrinkage. This leads to higher-quality parts and fewer rejections.
Another advantage of conformal cooling is its ability to improve energy efficiency. By cooling molds faster, you reduce the overall energy consumption of the manufacturing process. This not only lowers operational costs but also supports sustainability goals. Additionally, the uniform cooling provided by conformal channels minimizes internal stresses in the material, enhancing the durability and performance of the final product.
Implementing conformal cooling requires advanced manufacturing techniques, such as additive manufacturing, to create the intricate channel designs. However, the long-term benefits far outweigh the initial investment. You gain faster production cycles, better part quality, and reduced operational costs, making it a valuable addition to your rapid tooling strategy.
Rapid tooling significantly reduces the time it takes to bring your designs to life. Traditional tooling methods often require months to develop molds, but rapid tooling can shorten this timeline to just days or weeks. This acceleration allows you to respond quickly to market demands and customer needs. For example, by using injection techniques or additive manufacturing, you can create prototypes and production-ready molds in record time.
The ability to identify and address design flaws early in the process further enhances efficiency. Functional testing during the initial stages ensures that your final product meets all specifications. This proactive approach minimizes delays and helps you stay ahead of competitors.
| Benefit | Description |
|---|---|
| Decreased Tooling Time | Development time shortened from months to days or weeks. |
| Early Identification of Flaws | Enables functional testing during the initial design stage. |
Rapid tooling offers a cost-effective alternative to traditional methods. By leveraging techniques like vacuum casting, you can create low-cost patterns and molds using inexpensive materials. This approach reduces tooling costs by 15 to 25 percent. Additionally, shorter cycle times—up to 40 percent faster—translate to lower production costs.
These savings make rapid tooling an ideal choice for small-batch production or projects with tight budgets. You can achieve high-quality results without overspending, ensuring a better return on investment.
Rapid tooling empowers you to explore innovative designs without the constraints of traditional methods. Additive manufacturing, for instance, allows you to create complex geometries and customize products to meet specific requirements. This flexibility is invaluable when adapting to customer feedback or market trends.
Case studies highlight the versatility of rapid tooling. For example, companies like Wirco and Demir Engineering have used binder jetting to produce custom molds and parts quickly. These advancements enable faster deliveries, reduced downtime, and improved product quality.
| Case Study Title | Description |
|---|---|
| Faster Deliveries and Flexible Production with Binder Jetting | Wirco’s investment in sand 3D printing technology paid off in speed and precision. |
| 3D Printed Tooling Enables Quick-Turn Castings to Reduce Downtime | Demir Engineering used binder jetting for rapid replacement parts. |
By embracing rapid tooling, you can innovate faster and deliver tailored solutions that meet evolving customer needs.
Rapid tooling transforms how you approach prototyping and iteration. It allows you to test designs quickly, identify flaws, and refine products before full-scale production. This iterative process ensures that your final product meets both functional and aesthetic requirements.
Prototyping with rapid tooling significantly reduces the time it takes to bring a product to market. Companies using iterative prototyping have reported a 43% decrease in time-to-market. Additionally, iterative design increases the success rate of product launches by 25%. Products developed with consumer input during prototyping achieve a 50% higher market success rate. These statistics highlight the importance of incorporating rapid tooling into your development process.

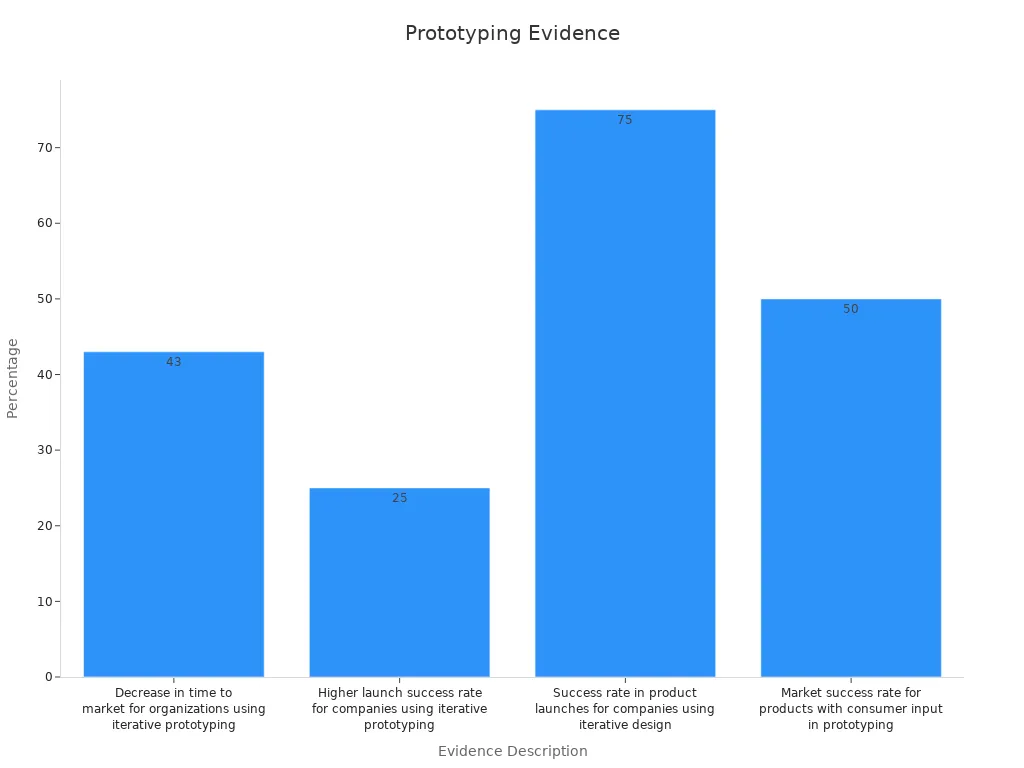

| Evidence Description | Statistic |
|---|---|
| Decrease in time to market for organizations using iterative prototyping | 43% |
| Higher launch success rate for companies using iterative prototyping | 25% |
| Success rate in product launches for companies using iterative design | 75% |
| Market success rate for products with consumer input in prototyping | 50% |
You can also use rapid tooling to create multiple prototypes in a short time. This flexibility allows you to test different designs and gather feedback from stakeholders or end-users. For example, Apple utilized early prototyping to enhance the user interface of the iPhone. This approach contributed to its success as the top-selling smartphone, with over 1.4 billion units sold.
By adopting rapid tooling, you can refine your designs efficiently and deliver high-quality products that meet customer expectations. This approach not only saves time but also ensures that your final product stands out in a competitive market.
Rapid tooling faces several material and design challenges that can impact its effectiveness. For instance, the size of the tools you can create depends on the build volume of CNC machines or 3D printers. This limitation makes it difficult to produce larger or more complex molds. Additionally, while rapid tooling has advanced, it still struggles to match the precision of traditional methods. Even small deviations in accuracy can lead to significant issues in the final product.
Another challenge lies in the cost of advanced materials and equipment. High-quality materials and specialized machinery often come with a hefty price tag, which can be a barrier for smaller businesses. Post-processing steps, such as acid baths or surface machining, add to the time and cost, reducing some of the benefits of rapid tooling. Furthermore, certain techniques are only suitable for low production volumes, making them less practical for large-scale manufacturing.
| Limitation Type | Description |
|---|---|
| Size Limitations | Build volume constraints of CNC machines or 3D printers hinder the production of larger or complex tools. |
| Precision and Accuracy | Rapid tooling may not achieve the same precision as traditional methods, which is critical for applications requiring high accuracy. |
| Cost of Advanced Materials and Equipment | High initial investment in materials and equipment poses challenges for smaller businesses. |
| Post-Processing Requirements | Additional steps like acid baths and surface machining increase time and costs. |
| Limited Production Volumes for Certain Techniques | Some methods are only viable for low production volumes, limiting their use in large-scale manufacturing. |
The initial investment in rapid tooling can be significant. Advanced machinery, such as CNC machines or industrial-grade 3D printers, requires a substantial financial commitment. This can be a hurdle, especially for small or medium-sized businesses. Additionally, the cost of training your team to operate these machines adds to the overall expense.
While rapid tooling reduces long-term costs, the upfront expenses may deter businesses from adopting it. For example, purchasing high-quality materials and maintaining specialized equipment can strain your budget. However, these investments often pay off in the long run by improving efficiency and reducing production times.
| Challenge Type | Description |
|---|---|
| Manufacturing Process Management | Careful management is required to avoid dysfunctional elements at the start of the activity. |
| Technology Lifespan Limitations | The technology cannot always be used indefinitely, unlike conventional methods. |
Rapid tooling emphasizes speed, but achieving precision at the same time can be challenging. Faster production cycles often come at the cost of accuracy. For example, some techniques may produce parts with slight imperfections, which can affect their functionality. You must carefully balance these factors to ensure high-quality results.
To address this, you can use hybrid approaches that combine rapid tooling with traditional methods. For instance, CNC machining can refine parts created through additive manufacturing, improving their precision. By adopting such strategies, you can maintain both speed and accuracy in your production process.
Tip: Always evaluate your project requirements to determine the best balance between speed and precision. This ensures you meet both deadlines and quality standards.
Overcoming challenges in rapid tooling requires strategic approaches and innovative thinking. You can address material limitations, upfront costs, and precision concerns by adopting the following solutions.
Choosing the right materials can help you overcome size and precision limitations. Advanced composites and hybrid materials offer better durability and accuracy. For example, reinforced polymers can withstand higher stress levels while maintaining dimensional stability. You can also explore materials specifically designed for rapid tooling, such as high-performance resins or aluminum alloys.
Tip: Collaborate with material suppliers to identify cost-effective options that meet your project requirements.
Upfront costs often deter businesses from adopting rapid tooling. You can mitigate this by investing in scalable equipment. Modular CNC machines and 3D printers allow you to expand capabilities as your production needs grow. Leasing equipment or partnering with service providers can also reduce initial expenses.
| Solution Type | Benefit |
|---|---|
| Modular Equipment | Expand capabilities over time. |
| Equipment Leasing | Lower upfront investment. |
| Service Partnerships | Access advanced tools affordably. |
Balancing speed and precision becomes easier when you combine rapid tooling methods. For instance, you can use additive manufacturing for initial designs and refine them with CNC machining. This hybrid approach ensures faster production without compromising accuracy.
Note: Hybrid techniques often deliver the best results for complex projects requiring tight tolerances.
Design automation tools streamline the process and reduce errors. Software like CAD and CAM enables you to create detailed models quickly. Automated simulations help you predict potential flaws and optimize designs before production begins.
By applying these solutions, you can maximize the benefits of rapid tooling while minimizing its challenges. These strategies ensure efficient production, cost savings, and high-quality results tailored to your needs.
Rapid tooling has transformed the production of custom plastic pipe fittings, enabling you to create highly specialized components for various applications. For instance, you can design fittings with unique geometries to address specific challenges, such as connecting pipes in tight spaces or handling high-pressure systems. These fittings often feature intricate designs that traditional methods struggle to produce efficiently.
Custom injection molders play a crucial role in this process. They use advanced techniques like injection molding and additive manufacturing to produce durable and precise fittings. Whether you need prototypes for testing or final products for installation, rapid tooling ensures that your fittings meet exact specifications. This approach is particularly beneficial for industries requiring high-performance components, such as plumbing, HVAC, and industrial piping systems.
Rapid tooling has gained traction across a wide range of industries due to its ability to deliver high-quality parts quickly and cost-effectively. You’ll find its applications in sectors like aerospace, automotive, and medical devices, where precision and reliability are paramount.
The industry has seen significant growth over the past 15 years, with companies across sectors such as aerospace, motor sports, medical, dental, and consumer products increasingly adopting additive processes for manufacturing high-value parts in low volumes. This trend indicates a widespread reliance on rapid tooling to enhance manufacturing efficiency and reduce costs.
In the medical field, for example, rapid tooling enables the production of custom prosthetics and surgical instruments. In aerospace, it supports the creation of lightweight, complex components that improve fuel efficiency. These examples highlight the versatility of rapid tooling in meeting diverse industry needs.
Successful rapid tooling projects share several common factors that you can apply to your own processes. Coordination between design and production teams ensures effective communication and smooth transitions. Choosing the right rapid tooling method, such as 3D printing for low-volume production or CNC machining for high durability, is critical for achieving the best results.
Select a reliable service provider known for high-quality results and tailored support.
Choose the appropriate rapid tooling method based on design complexity and production needs.
By following these practices, you can maximize the benefits of rapid tooling and achieve outstanding results in your projects.
Rapid tooling continues to evolve with the introduction of advanced materials and innovative technologies. High-density foam plastics are enhancing CNC machining capabilities, allowing you to create molds with greater precision and durability. These materials reduce production costs while maintaining quality, making them ideal for custom applications.
Emerging technologies like hybrid manufacturing combine additive processes with traditional methods. This approach lets you produce complex designs faster and refine them for better accuracy. For example, binder jetting and metal sintering enable the creation of intricate molds that were previously impossible to achieve.
The rapid prototyping market reflects this growth. It is projected to expand from $11.55 billion in 2025 to $27.11 billion by 2034, with a compound annual growth rate (CAGR) of 10.48%. This trend highlights the increasing demand for faster, cost-effective solutions in manufacturing.
Automation and artificial intelligence (AI) are transforming rapid tooling by streamlining processes and improving efficiency. Automated systems reduce human error and accelerate production cycles. For instance, robotic arms can handle repetitive tasks like mold assembly, ensuring consistent results.
AI-powered software enhances design optimization. It analyzes your CAD models to identify potential flaws and suggests improvements. This predictive capability saves time and minimizes waste during production. Machine learning algorithms also adapt to your specific requirements, making the tooling process more flexible and responsive.
By integrating automation and AI, you can achieve higher productivity and better quality control. These advancements position rapid tooling as a key player in the future of manufacturing.
Sustainability is becoming a priority in rapid tooling. Techniques like additive manufacturing reduce material waste by building parts layer by layer. This method uses only the necessary amount of material, minimizing excess and promoting eco-friendly practices.
Energy-efficient technologies further support sustainability goals. Conformal cooling, for example, reduces energy consumption during production by optimizing heat distribution. This not only lowers operational costs but also decreases the environmental impact of manufacturing processes.
As industries focus on greener solutions, rapid tooling offers a pathway to sustainable production. By adopting these practices, you contribute to a more environmentally responsible future while maintaining efficiency and quality.
The next decade promises exciting advancements in rapid tooling. As industries demand faster, more efficient solutions, you can expect significant changes in materials, processes, and technologies. Here are some key predictions shaping the future of rapid tooling:
Wider Adoption of Smart Materials
Smart materials, such as shape-memory alloys and self-healing polymers, will likely become more common. These materials adapt to environmental changes, improving the durability and functionality of your tools. For example, self-healing molds could repair minor damages, reducing downtime and maintenance costs.
Increased Use of Hybrid Manufacturing
Hybrid manufacturing, which combines additive and subtractive techniques, will redefine how you create complex molds. This approach allows you to produce intricate designs quickly and refine them for precision. It bridges the gap between speed and accuracy, making it ideal for custom applications.
AI-Driven Design Optimization
Artificial intelligence will play a larger role in rapid tooling. AI-powered software will analyze your designs, suggest improvements, and predict potential flaws. This will help you create better tools faster, with fewer iterations. Machine learning algorithms will also adapt to your specific needs, enhancing efficiency.
Tip: Stay updated on AI tools for rapid tooling. They can save time and improve your results.
The rapid tooling industry is evolving at a remarkable pace. By embracing these advancements, you can stay ahead of the curve and deliver innovative solutions to your customers.
Rapid tooling transforms how you produce custom plastic pipe fittings. It delivers faster, more efficient, and cost-effective solutions tailored to your needs. While challenges like material limitations exist, advancements in technology continue to expand its possibilities. By adopting rapid tooling, you can stay competitive and meet the growing demand for customized products. This approach not only enhances your production capabilities but also ensures you remain a leader in innovation. Embracing these methods positions you to succeed in an ever-evolving market.
Rapid tooling benefits industries like aerospace, automotive, medical devices, and consumer goods. You can use it to create precise, custom parts quickly. It’s especially useful for sectors requiring prototypes or low-volume production.
Tip: Explore rapid tooling if your industry demands fast, high-quality solutions.
Rapid tooling minimizes material waste and shortens production cycles. You can also avoid expensive traditional molds by using cost-effective techniques like additive manufacturing. This makes it ideal for small-batch production.
Yes, rapid tooling excels at creating intricate designs. Techniques like 3D printing allow you to produce complex geometries that traditional methods struggle with. This flexibility helps you meet unique project requirements.
Rapid tooling works best for prototyping and small to medium production runs. For large-scale manufacturing, traditional tooling may still be more cost-effective. Evaluate your project’s volume and budget to decide.
You can use a variety of materials, including plastics, metals, and composites. The choice depends on your project’s needs. For example, aluminum molds offer durability, while resins provide flexibility for intricate designs.
Note: Consult material experts to select the best option for your application.
