Overmolding is a manufacturing process that combines two or more materials into one cohesive part. It allows you to create multi-material components with enhanced durability and functionality. This technique is particularly valuable for plastic and rubber parts, where combining materials improves performance and design.
The impact of Overmolding Techniques is evident in various industries:
1. The global plastic overmolding market is projected to reach multi-billion-dollar valuations by 2033.
2. The automotive sector's demand for lightweight and durable parts drives significant growth.
3. The electronics industry focuses on miniaturization and functionality, further expanding the market.
By using overmolding, you can create products that are not only durable but also visually appealing.
Overmolding is a manufacturing process that combines two or more materials to create multi-material molded parts. This technique involves molding one material, known as the substrate, and then adding another material over it. The result is a single, cohesive part with enhanced functionality and durability.
You can think of overmolding as a way to integrate different materials into a single product without the need for additional assembly. For example, a toothbrush with a soft rubber grip over a hard plastic handle is a common application of this process.
Overmolding techniques are widely used across industries due to their versatility. The Overmolding Service Market report highlights its role in creating products with improved product performance and aesthetic appeal. It also emphasizes the competitive advantage overmolding offers by reducing production costs and increasing efficiency.
Here’s a quick look at how different industries utilize overmolding:
Industry Sector | Applications |
---|---|
Medical Industry | Manufacturing overmolded medical devices with ergonomic grips and handles. |
Automobile Industry | Used for engine covers, electronics enclosures, and comfortable interior products. |
Electronics Industry | Manufacturing custom plastic casings and overmolding electronic components for protection. |
Others | Enhances product functionality in consumer products, industrial components, and wearable electronics. |
Overmolded components offer several advantages that make them a preferred choice for manufacturers. These benefits include enhanced functionality, cost savings, and product reliability.
Improved Durability: Overmolding creates a strong bond between materials, resulting in parts that can withstand wear and tear. This is especially important for products exposed to harsh environments, such as automotive and industrial applications.
Enhanced Aesthetics: Overmolding allows you to combine materials with different colors and textures, giving your products a premium look and feel. This is particularly useful in consumer goods and electronics.
Cost Efficiency: By eliminating the need for secondary assembly, overmolding reduces production time and material waste. Manufacturers also benefit from fewer defects and lower warranty costs.
Design Flexibility: Overmolding enables you to create multi-material components with complex shapes and features. For instance, Toyota collaborated with Nexa3D to use Freeform Injection Molding for rapid prototyping. This approach allowed them to make design changes without being constrained by mold design.
Sustainability: Many manufacturers now prioritize recyclable or bio-based materials for overmolding applications. According to recent data, over 65% of manufacturers focus on sustainable materials, and demand for bio-based TPEs is growing at 12% annually.

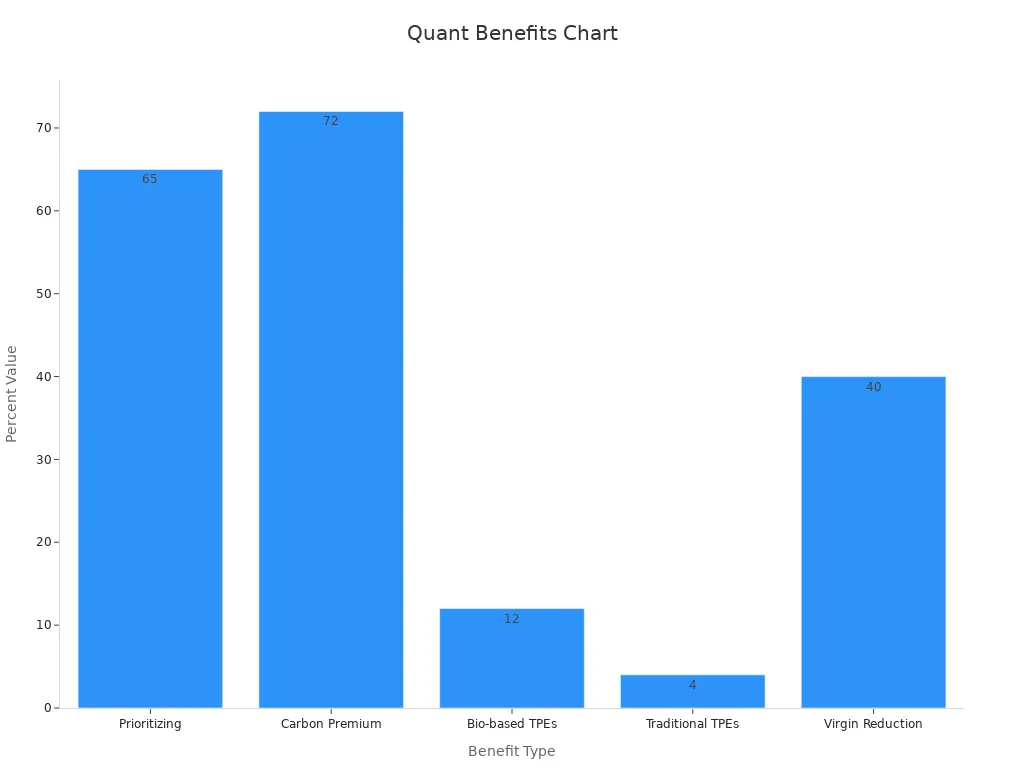

Here’s a visual representation of the quantifiable benefits of overmolded components:
By leveraging effective overmolding techniques, you can achieve improved product performance and long-term cost savings. This process not only enhances the functionality of your products but also ensures they meet the demands of modern consumers.
Overmolding techniques play a crucial role in manufacturing multi-material components. Each method offers unique advantages, making it essential to choose the right one for your application. Below, you'll find an overview of three popular overmolding techniques: Injection Molding, Transfer Molding, and Compression Molding.
Injection molding is one of the most widely used overmolding techniques. It involves injecting molten material into a mold cavity, where it solidifies to form the desired shape. This method is ideal for creating complex designs with high precision.
Advantages of Injection Molding:
- Fast Production Speed: This technique has the shortest cycle times, making it highly efficient for large-scale production.
- High Precision: It produces parts with intricate details and tight tolerances.
- Material Versatility: You can use a wide range of materials, including TPE, TPU, and ABS.
Applications:
Injection molding is commonly used for overmolding soft materials onto rigid substrates. For example, it’s perfect for creating ergonomic grips on tools or protective casings for electronics.
Tip: If you need to produce high volumes of overmolded components quickly, injection molding is your best option.
Transfer molding is another effective overmolding technique. It involves placing a pre-measured amount of material into a chamber, which is then transferred into the mold cavity under pressure. This method is particularly useful for smaller production runs and simpler designs.
Advantages of Transfer Molding:
- Cost-Effective for Complex Shapes: Compared to injection molding, transfer molding is less expensive for intricate designs.
- Reduced Tooling Costs: The molds used in this process are simpler and more affordable.
- Flexibility: It works well with both thermosetting and thermoplastic materials.
Applications:
Transfer molding is often used for overmolding electrical components, such as connectors and switches. It provides excellent insulation and protection for delicate parts.
Did You Know? Transfer molding generates more waste than injection molding. However, it remains a popular choice for low-volume production due to its lower upfront costs.
Compression molding is a traditional overmolding technique that involves placing material into an open mold cavity. The mold is then closed, and heat and pressure are applied to shape the material. While slower than other methods, it’s highly effective for certain applications.
Advantages of Compression Molding:
- Low Material Waste: This method minimizes waste, making it an eco-friendly option.
- Suitable for Large Parts: It’s ideal for manufacturing large, flat, or thick components.
- Durability: The resulting parts are strong and resistant to wear and tear.
Applications:
Compression molding is commonly used for overmolding rubber onto metal or plastic substrates. For instance, it’s used to create durable seals, gaskets, and automotive components.
Note: Compression molding requires more manual labor, which can increase production time. However, it’s an excellent choice for producing durable, high-quality parts.
Here’s a quick comparison of the three overmolding techniques to help you decide which one suits your needs:
Technique | Speed | Cost Efficiency | Best For |
---|---|---|---|
Injection Molding | Fastest | High for large volumes | Complex designs, high-volume runs |
Transfer Molding | Moderate | Cost-effective | Small batches, intricate shapes |
Compression Molding | Slowest | Moderate | Large, durable parts |
By understanding these overmolding techniques, you can select the most effective overmolding method for your project. Each technique offers unique benefits, ensuring you can meet your specific manufacturing requirements.
Choosing the right overmolding materials is essential for creating durable and functional parts. Three commonly used materials in overmolding are TPE, ABS, and Silicone. Each offers unique properties that make them suitable for specific applications.
Material | Properties | Applications |
---|---|---|
TPE | Flexibility, durability, strong bonding | Handles, grips, automotive components |
ABS | Rigid, good impact resistance | Automotive, electronics |
Silicone | Heat-resistant, flexible, biocompatible | Medical devices, kitchen utensils |
TPE stands out for its flexibility and durability. It bonds well with rigid substrates, making it ideal for products like ergonomic grips and automotive components. ABS, known for its rigidity and impact resistance, is widely used in electronics and automotive parts. Silicone excels in heat resistance and biocompatibility, making it perfect for medical devices and kitchen utensils.
When selecting overmolding materials, you should assess their chemical properties, molecular structure, and physical characteristics. Factors like hardness, elasticity, and thermal stability play a crucial role in determining compatibility. Processing conditions, including temperature and pressure, also influence the success of the overmolding process.
The rubber overmolding process relies on effective bonding mechanisms to ensure the durability and functionality of parts. Bonding rubber onto substrates, such as metal or plastic, requires careful consideration of surface energy, chemical composition, and material texture.
Study Focus | Key Findings | Methodology |
---|---|---|
Performance of polymer-metal hybrids | Joint strength and media tightness depend on thermal, media, and mechanical loads. | Experiments with polymer-metal hybrid specimens and bonding agents. |
Influence of temperature on bonding | Joints lose tightness after exposure to temperatures ranging from 30°C to +150°C. | Analysis of thermal expansion behavior and joint integrity. |
Role of elastomeric layers | Minimum thickness of elastomeric layers is critical for maintaining joint integrity. | Experimental validation of elastomeric layer effectiveness. |
Adhesion tests, thermal cycling tests, and mechanical property evaluations help assess overmolding material compatibility. Adhesion tests measure bond strength through peel or shear tests. Thermal cycling tests evaluate how temperature fluctuations affect bond integrity. Mechanical property evaluations ensure the parts can withstand tensile stress, impact, and flexibility under load.
For bonding rubber to metal substrates or plastic substrates, surface energy plays a significant role. High surface energy improves adhesion, while chemical composition and texture further enhance bonding strength. Rubber over rigid plastic applications benefit from elastomeric layers that maintain joint integrity under mechanical stress.
By understanding these bonding mechanisms, you can optimize the rubber overmolding process and create reliable, high-performance parts.
Understanding the differences between overmolding and insert molding helps you choose the right manufacturing process for your parts. While both techniques involve combining materials, they differ significantly in their approach and applications.
The processes also differ in execution:
- Overmolding creates a substrate in one mold and applies a second material in another mold.
- Insert Molding integrates various substrates directly into the molding process, reducing complexity for certain designs.
These distinctions highlight how each method caters to different manufacturing needs. If your project involves overmolding materials like TPE or silicone onto a molded base, overmolding is the better choice. For applications requiring embedded components, insert molding offers greater flexibility.
Selecting the optimal process depends on factors like cost, speed, and design requirements. Comparing the two techniques can help you make an informed decision:
Aspect | Insert Molding | Overmolding |
---|---|---|
Process | Involves one shot of molten plastic | Involves injecting two shots of materials |
Speed | Generally faster cycle time | Slower due to multiple shots |
Cost | Generally less expensive | More expensive due to two-step process |
Insert molding is ideal for projects requiring faster production and lower costs. It works well for embedding metal or other substrates into plastic parts. Overmolding, while slower and costlier, excels in creating durable, multi-material components with enhanced functionality.
When choosing between these processes, consider your application’s specific needs. For example, if your product requires ergonomic grips made from TPE or silicone, overmolding provides the best solution. If your design involves integrating metal inserts into plastic housings, insert molding offers a more efficient approach.
Research supports the importance of tailoring the process to your application. Studies emphasize the role of scientific molding and Design of Experiments (DOE) in optimizing injection molding processes. They also highlight the need to analyze loads, stresses, and environmental factors when selecting overmolding materials. By evaluating these criteria, you can ensure your parts meet performance and cost expectations.
When designing overmolded parts, selecting compatible overmolding materials is crucial. The bond between the substrate and the overmolded layer determines the product's durability and performance. You should evaluate the chemical properties of the materials to ensure they form a strong bond. For example, thermoplastic elastomers (TPE) bond well with rigid plastics like ABS, making them ideal for creating ergonomic grips or flexible seals.
Surface preparation also plays a significant role in bonding strength. Cleaning the substrate removes contaminants that could weaken the bond. Some manufacturers use primers or adhesives to enhance adhesion, especially when overmolding rubber onto metal or plastic. Proper temperature and pressure settings during the molding process further ensure a secure bond.
By carefully matching materials and optimizing bonding conditions, you can create overmolded parts that withstand mechanical stress and environmental factors.
Surface texture and design aesthetics significantly impact the user experience of overmolded products. Overmolding allows you to combine materials with different textures and colors, enhancing both functionality and visual appeal. For instance, adding a soft-touch TPE layer to a rigid plastic handle improves grip and comfort.
Studies show that surface texture and aesthetics improve user satisfaction in several ways:
Aspect | Description |
---|---|
Enhanced Aesthetics | Integrating different colors and textures improves visual appeal and brand differentiation. |
Improved Ergonomics | Soft-touch surfaces enhance comfort, reducing user fatigue and increasing satisfaction. |
Better Product Performance | Combining materials with different properties enhances grip and shock absorption. |
An outdoor equipment manufacturer demonstrated this by overmolding a rubber-like material onto metal components. This approach improved the product's grip and texture, making it more functional and visually appealing.
When designing overmolded parts, consider how the surface texture will interact with the user's hand. Smooth surfaces may look sleek but can become slippery, while textured TPE layers provide better grip. By focusing on both aesthetics and functionality, you can create products that stand out in the market.
Overmolding has revolutionized manufacturing by enabling the creation of multi-component parts with enhanced functionality and durability. Its versatility makes it a go-to solution across various industries. Below are some key overmolding applications in automotive, electronics, and healthcare sectors.
In the automotive industry, overmolding plays a critical role in improving the performance and reliability of vehicle components. Overmolded sensors and insert-molded connectors ensure vibration resistance and electrical stability, making them ideal for engine parts and dashboard electronics. These components withstand harsh conditions, including extreme temperatures and constant vibrations.
For example, manufacturers use overmolding materials like TPE to create high-performance seals for engine covers and gaskets. These seals provide excellent shock absorption properties, ensuring durability and leak prevention. Additionally, soft rubber handles made with TPE enhance the ergonomics of interior car components, such as gear shifts and door handles, improving user comfort.
Overmolding has become indispensable in the electronics and consumer goods sectors. It allows manufacturers to combine materials like TPE and rigid plastics to create durable, functional, and visually appealing products. Waterproof button seals, for instance, protect smartphones from water damage, while overmolded USB ports ensure robust metal-plastic integration in laptops.
A notable case study highlights how a global smartphone brand reduced after-sales repair costs by 41%. They achieved this by overmolding a hard PC inner shell with a TPU shock-absorbing layer for their TWS earbud cases. This solution addressed frequent cracking issues caused by drops, significantly improving product reliability.
In healthcare, overmolding enhances the safety and performance of medical devices. Surgical tools with soft-grip overmolding improve ergonomics, reducing hand fatigue during prolonged use. Overmolding materials like TPE also provide biocompatibility and chemical resistance, ensuring these tools meet stringent medical standards.
High-performance seals created through overmolding are essential for applications like syringes and tubing. These seals ensure airtight or watertight connections, preventing contamination. Additionally, instrument housings benefit from impact resistance and noise control, enhancing both durability and user experience.
Application | Performance Attributes |
---|---|
Handheld devices | Soft grips, vibration control, abrasion resistance |
Surgical instruments | Nonslip grips, chemical resistance, biocompatibility |
Instrument housings | Impact resistance, noise and vibration control, aesthetics |
Tubing or Luer fittings | Liquid or gas seals |
By leveraging custom rubber overmolding services, you can create medical devices that combine functionality with user comfort. Overmolding materials like TPE ensure these products meet the highest standards of safety and reliability.
Overmolding techniques have transformed the way multi-material parts are manufactured. By combining overmolding materials like TPE, ABS, and silicone, you can create products that are durable, functional, and visually appealing. This process enhances product performance across industries by improving grip, reducing noise, and creating water-tight seals. It also streamlines production, saving time and costs.
Industry reports emphasize how overmolding aligns with market demands for eco-friendly and high-performance products. Advanced molding technologies allow you to integrate multiple materials into a single component, improving ergonomics and aesthetics. Whether you aim to enhance medical devices, automotive parts, or consumer electronics, overmolding offers a cost-effective solution.
Take advantage of overmolding materials to meet your manufacturing needs. This innovative process ensures your products stand out in durability, functionality, and design.
Overmolding involves molding one material over another in separate steps. Two-shot molding, however, uses a single machine to inject two materials in one cycle. Overmolding is more flexible for smaller production runs, while two-shot molding suits high-volume manufacturing.
Yes, you can use recycled materials in overmolding. Many manufacturers now incorporate eco-friendly materials like recycled TPE or ABS. However, you must ensure the recycled material meets quality standards for bonding and durability.
To ensure strong bonding, clean the substrate thoroughly to remove contaminants. Use primers or adhesives if needed. Proper temperature and pressure settings during the molding process also play a critical role in achieving a durable bond.
Yes, overmolding works well for small-scale production. Techniques like transfer molding are cost-effective for low-volume runs. You can also use simpler molds to reduce tooling costs, making it a practical choice for smaller projects.
Overmolding benefits industries like automotive, electronics, and healthcare. Automotive parts gain durability and vibration resistance. Electronics use it for waterproofing and shock absorption. Healthcare applications include ergonomic grips and biocompatible medical devices.
