Injection Mold Polishing Guide for High-Gloss Surfaces

Injection mold polishing plays a critical role in achieving high-gloss surfaces for plastic parts. This process enhances the surface quality of molds, ensuring a high-quality appearance for the final product. Industries such as automotive, consumer goods, and electronics rely on polished mold surfaces to meet strict aesthetic and functional standards. For instance, automotive manufacturers require roughness values below Ra 0.05 μm for glossy interior components. A smooth surface finish also improves resin flow and cooling during injection molding, resulting in consistent dimensions and fewer defects.

Precision and quality are essential in mold polishing techniques. Polished molds not only produce high-quality surface finishes but also extend mold longevity. By following best practices for effective mold polishing, you can achieve high reflectivity and a flawless finish, ensuring superior product performance.

Benefits of Injection Mold Polishing

Enhanced Aesthetic Appeal

Injection mold polishing significantly enhances the visual appeal of molded parts. A polished mold creates a mirror-like surface finish, which is essential for products requiring a high-gloss appearance. This is particularly important in industries like consumer electronics and automotive, where aesthetics play a critical role in product success. For example, polished molds ensure that plastic components, such as smartphone cases or car interiors, have a flawless and reflective surface.

Tip: A smooth injection moulding surface finish not only improves appearance but also adds value to the final product, making it more appealing to customers.

The table below highlights how mold polishing contributes to enhanced appearance and other benefits:

Improved Product Functionality

Polishing molds improves the functionality of molded parts by ensuring a smooth and defect-free surface. Scratches or pits on the mold surface can transfer to the final product, affecting its performance. For instance, optical components like lenses require a nearly perfect surface to function effectively.

• Defects such as scratches and pits on the mold surface replicate onto molded parts, reducing their functionality.
• High-gloss finishes are critical for products with precise optical properties, such as camera lenses or LED covers.
• Advanced techniques like electro-slag remelting (ESR) in mold steel production reduce inclusions, resulting in smoother surfaces and better-quality parts.

By addressing these issues, plastic injection mold polishing ensures that products meet both aesthetic and functional standards.

Reduction in Surface Defects

Mold polishing minimizes surface imperfections, leading to fewer defects in the final product. Imperfections like flow lines, weld marks, or part sticking can compromise the quality of molded parts. A polished mold ensures consistent resin flow during the injection process, reducing the likelihood of such defects.

Note: Quality control in mold polishing is essential to achieve a defect-free surface. Regular inspections and adherence to best practices ensure optimal results.

Polished molds also contribute to consistent part dimensions, ensuring that each product meets the required specifications. This level of precision is crucial for industries like automotive and medical devices, where even minor defects can have significant consequences.

Increased Mold Longevity

Polishing your injection molds doesn’t just improve the surface finish of your products. It also plays a key role in extending the lifespan of the molds themselves. A well-polished mold experiences less wear and tear during production, which means you can use it for a longer time without compromising quality.

When molds have a smooth surface, they reduce friction during the injection molding process. This minimizes the chances of scratches, abrasions, or other damage that could shorten the mold’s life. For example, molds with rough or uneven surfaces often face higher stress, leading to premature failure. By polishing the mold, you ensure it can withstand repeated use while maintaining its structural integrity.

Tip: Regular polishing not only extends the life of your mold but also reduces maintenance costs over time.

Here are some ways polishing contributes to mold longevity:
- Prevents Corrosion: Polished surfaces are less likely to trap moisture or contaminants, which can cause rust or corrosion.
- Reduces Stress Points: Smoother surfaces distribute stress more evenly, preventing cracks or fractures.
- Improves Ejection: Polished molds allow parts to release more easily, reducing the strain on the mold during ejection.

Additionally, maintaining your molds through polishing ensures consistent performance. You avoid costly downtime caused by mold repairs or replacements.

Note: Always use the right polishing tools and techniques for your mold material. Improper methods can damage the mold instead of preserving it.

By investing in proper mold polishing, you not only enhance the quality of your products but also save money in the long run. A durable mold is a valuable asset for any manufacturing process.

Types of Polishing Methods

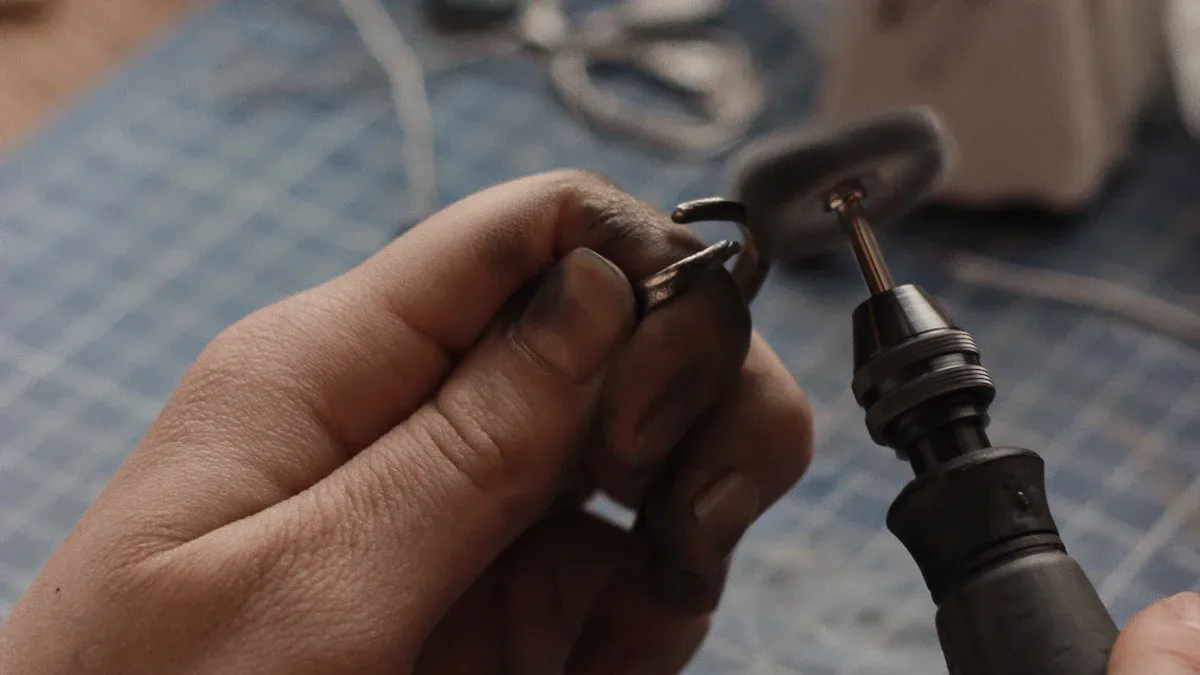

Mechanical Polishing

Mechanical polishing involves using abrasive tools to smooth the surface of the mold. You can achieve a high-gloss finish by manually or mechanically grinding the mold surface with materials like sandpaper, diamond paste, or polishing wheels. This method is ideal for molds requiring precise control over the surface finish.

• Advantages:
• Provides excellent control over the polishing process.

• Suitable for molds with simple designs or flat surfaces.

• Limitations:

• Time-consuming for complex mold designs.
• Requires skilled operators to avoid over-polishing or damaging the mold.

Tip: Use diamond paste for achieving ultra-smooth finishes on molds used in injection moulding surface finish applications.

Mechanical polishing works best for molds made of hard materials like steel or tungsten carbide. It ensures a consistent surface finish, making it a popular choice for industries like automotive and consumer goods.

Chemical Polishing

Chemical polishing uses chemical solutions to dissolve microscopic layers of the mold surface, creating a smooth and reflective finish. This method is particularly effective for molds with intricate designs or hard-to-reach areas.

• How It Works:
• The mold is immersed in a chemical bath containing acids or alkalis.

• The solution reacts with the mold material, removing surface irregularities.

• Benefits:

• Ideal for molds with complex geometries.
• Produces a uniform finish without manual intervention.

Note: Always ensure proper safety measures when handling chemicals to prevent accidents or damage to the mold.

Chemical polishing is commonly used for molds made of aluminum or magnesium alloys. It enhances the gloss and reduces surface defects, making it suitable for applications requiring high precision, such as medical devices or optical components.

Ultrasonic Polishing

Ultrasonic polishing uses high-frequency vibrations to remove surface imperfections and achieve a superior finish. This method is highly effective for molds requiring ultra-smooth surfaces, such as those used in plastic injection mold polishing for optical or electronic components.

• Process Overview:
• A tool vibrates at ultrasonic frequencies while in contact with the mold surface.

• Abrasive particles or fluids assist in removing material and smoothing the surface.

• Performance Metrics:

• Surface quality improves significantly, with roughness values reduced from Ra = 5.66 µm to Ra = 0.18 µm.
• Ultrasonic burnished molds achieve Ra values below 0.2 µm, ensuring a high level of gloss.

Tip: Ultrasonic polishing is ideal for molds requiring precise surface finishes, such as camera lenses or LED covers.

This method offers exceptional results for molds made of hard materials like Co-Cr alloys. It ensures a consistent injection moulding surface finish, reducing defects and improving product quality.

Electrolytic Polishing

Electrolytic polishing is a highly effective method for achieving smooth and glossy mold surfaces. This process uses an electrochemical reaction to remove material from the mold's surface. By immersing the mold in an electrolyte solution and applying an electric current, you can selectively dissolve surface irregularities. This results in a uniform and reflective finish, ideal for high-gloss applications.

The process works by targeting the concave and convex areas of the mold surface. The anodic smoothing phase reduces surface roughness, while the anodic brightening phase enhances gloss. This dual action ensures a flawless finish, making it a preferred choice for molds used in industries like medical devices and optics.

Tip: To achieve the best results, monitor key parameters such as current density, temperature, and electrolyte composition. These factors directly influence the quality of the finish.

Scientific studies have shown that electrolytic polishing significantly decreases surface roughness while increasing gloss. Researchers have developed mathematical models to predict outcomes based on variables like process duration, bath contamination, and current density. These models help you optimize the process for maximum efficiency and quality. For example, a nonlinear logistic growth model visualizes trends in gloss levels, providing insights into how temperature and current density interact to produce a high-gloss finish.

This method is particularly effective for molds made of stainless steel or other conductive materials. It offers several advantages:
- Precision: Electrolytic polishing reaches intricate details and hard-to-access areas.
- Consistency: The process produces a uniform finish across the entire mold surface.
- Efficiency: It requires less manual effort compared to mechanical polishing.

However, you should also consider potential limitations. The process requires specialized equipment and careful handling of chemicals. Proper safety measures are essential to prevent accidents and ensure the longevity of your molds.

Note: Regular maintenance of the electrolyte bath is crucial. Contaminants can reduce the effectiveness of the polishing process, leading to inconsistent results.

By mastering electrolytic polishing, you can achieve superior surface finishes that meet the highest industry standards. This method not only enhances the appearance of your products but also improves their functionality and durability.

Fluid Polishing

Fluid polishing is an innovative technique that uses high-speed fluid streams to smooth and polish mold surfaces. This method relies on the abrasive action of fluid particles to remove surface imperfections. It is particularly useful for molds with complex geometries or intricate designs.

The process involves directing a pressurized fluid containing abrasive particles onto the mold surface. The fluid's velocity and pressure determine the polishing intensity. By adjusting these parameters, you can achieve precise control over the surface finish.

Tip: Use fluid polishing for molds with delicate features or hard-to-reach areas. This method ensures a consistent finish without damaging intricate details.

Fluid polishing offers several benefits:
- Versatility: It works on a wide range of materials, including metals and ceramics.
- Non-contact Process: The absence of direct contact minimizes the risk of scratches or damage.
- Adaptability: You can customize the abrasive fluid composition to suit specific mold materials and requirements.

This method is ideal for applications requiring ultra-smooth surfaces, such as optical lenses or medical implants. It ensures a high level of precision, making it a valuable tool for industries that demand flawless finishes.

Note: Regularly inspect and maintain the equipment to ensure consistent performance. Proper handling of abrasive fluids is also essential to avoid contamination or wear on the mold.

Fluid polishing represents a cutting-edge solution for achieving high-gloss surfaces. By incorporating this technique into your mold polishing process, you can enhance product quality and meet the most demanding industry standards.

Choosing the Right Polishing Method

Selecting the right polishing method for your injection mold depends on several critical factors. Each mold has unique requirements based on its material, design complexity, and production constraints. By carefully evaluating these aspects, you can ensure a high-quality surface finish and optimize your manufacturing process.

Consideration of Mold Material

The material of your mold plays a significant role in determining the appropriate polishing technique. Different materials respond differently to polishing methods, so understanding their properties is essential. For example, steel molds, commonly used in plastic injection mold polishing, are durable and can withstand mechanical or ultrasonic polishing. On the other hand, softer materials like aluminum may require gentler methods such as chemical or fluid polishing to avoid damage.

You should also consider the hardness and thermal conductivity of the mold material. Harder materials may take longer to polish but provide better durability and resistance to wear. Materials with high thermal conductivity, like copper alloys, benefit from smoother surfaces that enhance cooling efficiency during injection molding. Matching the polishing method to the material ensures a consistent injection moulding surface finish and prolongs the mold's lifespan.

Tip: Always consult the material specifications of your mold to determine the most effective polishing method.

Complexity of Mold Design

The complexity of your mold design significantly influences the choice of polishing technique. Intricate designs with tight corners, deep cavities, or fine details require methods that can reach these areas without compromising the mold's integrity. For instance, ultrasonic or fluid polishing works well for molds with complex geometries, as these methods can access hard-to-reach areas.

To better understand how design features impact polishing, consider the following table:

Molds with features like cooling channels or ejection systems require precise polishing to maintain functionality. A smooth surface finish ensures efficient cooling and part ejection, reducing production defects. By aligning the polishing method with the mold's design complexity, you can achieve a flawless gloss and enhance overall performance.

Cost and Time Constraints

Cost and time constraints often dictate the choice of polishing method. Some techniques, like mechanical polishing, are cost-effective but may require more time and skilled labor. Others, such as ultrasonic or electrolytic polishing, offer faster results but involve higher initial investments in equipment and materials.

You should evaluate the production volume and budget for your project. For high-volume production, investing in advanced polishing methods can save time and reduce long-term costs by minimizing defects and maintenance. Conversely, for smaller projects, manual or mechanical polishing may provide a more economical solution.

Note: Balancing cost and time constraints with the desired surface finish is crucial. A well-polished mold not only improves product quality but also reduces operational inefficiencies.

By considering these factors, you can select a polishing method that aligns with your production goals and ensures optimal results.

Desired Surface Finish

Achieving the desired surface finish is a critical step in injection mold polishing. The surface finish directly impacts the appearance, functionality, and performance of the final product. Understanding your specific requirements helps you choose the right polishing techniques and ensures the best results.

Why Surface Finish Matters

The surface finish of a mold determines the texture and gloss of the molded part. A smooth, high-gloss finish enhances the product's aesthetic appeal, making it more attractive to customers. For functional components, the finish affects performance. For example, optical lenses require a flawless surface to ensure clarity and precision.

Did You Know?
A high-quality surface finish can also improve the durability of the mold. Smooth surfaces reduce friction during production, minimizing wear and tear.

Factors to Consider

When determining the desired surface finish, you need to evaluate several factors. Each factor plays a role in ensuring the final product meets your expectations.

1. Product Application
   The purpose of the molded part influences the required finish. Consumer goods often demand a glossy, polished look, while industrial components may prioritize functionality over appearance.

2. Material of the Molded Part
   Different materials react differently to mold surfaces. For instance, transparent plastics like polycarbonate require a mirror-like finish to maintain clarity.

3. Industry Standards
   Many industries have specific surface finish requirements. Automotive parts, for example, often need finishes with roughness values below Ra 0.05 μm to achieve a sleek, reflective appearance.

4. Customer Expectations
   Always consider the end user's expectations. A visually appealing product can enhance customer satisfaction and increase market value.

Measuring Surface Finish

Surface finish is typically measured using roughness values, such as Ra (average roughness). Lower Ra values indicate smoother surfaces. Tools like profilometers or optical microscopes help you measure these values accurately.

Tip: Always verify the surface finish using reliable measurement tools. Consistency ensures that every product meets quality standards.

Matching Finish to Function

The desired surface finish should align with the product's function. For example:
- Glossy Finishes: Ideal for decorative items like smartphone cases or car interiors.
- Matte Finishes: Suitable for products requiring a non-reflective surface, such as medical devices.
- Textured Finishes: Useful for improving grip or hiding minor imperfections in industrial parts.

By carefully considering these factors, you can achieve a surface finish that enhances both the appearance and performance of your molded parts.

Remember: The right surface finish not only improves product quality but also reduces production defects and maintenance costs. Always aim for precision and consistency in your polishing process.

Best Practices for Effective Mold Polishing

Proper Tool Selection and Maintenance

Choosing the right tools is essential for achieving a high-quality finish in mold polishing. Tools like oilstones, sandpaper, and polishing wheels must match the mold material and desired surface finish. For example, the SPI standards recommend specific tools based on the required finish.

Maintaining your tools is equally important. Clean them regularly to prevent contamination. Replace worn-out tools to avoid uneven polishing. Always match the tool shape to the mold to prevent deformation and ensure a consistent injection moulding surface finish.

Tip: Use oilstone with a horizontal handle to minimize scratches and achieve a smooth gloss.

Step-by-Step Polishing Process

Following a systematic polishing process ensures consistent results. Start by cleaning the mold to remove contaminants. Then, proceed with these steps:

1. Begin pre-polishing with felt or sisal polishing wheels and a graining paste of about 10 microns.
2. Use flannel or fiber buffing wheels with finer polishes for the next stage.
3. Finish with fine natural hair brushes for the final polishing step.

Polish challenging areas first to ensure thoroughness. For uniformity, polish multiple components separately. Attach sandpaper or saw blades to protect edges during the process.

Note: Regularly inspect the mold during polishing to detect undercuts or imperfections early.

Safety Measures During Polishing

Safety should always be a priority during mold polishing. Wear protective gear like gloves, goggles, and masks to shield yourself from dust and debris. Handle chemicals and abrasive materials with care to avoid accidents.

Keep your workspace clean and organized. Ensure proper ventilation when using chemical polishing methods. Follow manufacturer guidelines for tool operation to prevent injuries.

Reminder: Never rush the process. Polishing requires patience and precision to achieve the desired surface finish without compromising safety.

Importance of Quality Control

Quality control plays a vital role in achieving consistent and flawless results in mold polishing. It ensures that every step of the polishing process meets the required standards, reducing the risk of defects in the final product. By implementing quality control measures, you can maintain high precision and deliver polished molds that meet industry expectations.

One of the most effective ways to ensure quality is through process audits. These audits help you identify variations in the polishing process that could lead to defects. Instead of relying solely on final inspections, process audits allow you to address issues at their source. They also provide valuable data for root cause analysis, helping you pinpoint areas for improvement.

• Process audits prevent defects by identifying variations early.
• Audit reports highlight opportunities to enhance polishing techniques.
• Root cause analysis ensures long-term improvements in quality.

Statistical Process Control (SPC) is another essential tool for maintaining quality. By analyzing random samples of polished molds, SPC helps you detect variations in surface finish. This data enables you to model factors that affect quality, leading to more consistent results.

• SPC identifies variations that impact surface finish.
• It provides insights into factors causing quality fluctuations.
• Improved processes result in fewer defects and higher efficiency.

Regular inspections during polishing also ensure that tools and techniques remain effective. By monitoring the process closely, you can catch imperfections early and make adjustments as needed. This proactive approach saves time and reduces waste, ensuring that your molds meet the highest standards.

Tip: Always document your quality control measures. Detailed records help you track progress and maintain consistency in future projects.

By prioritizing quality control, you can achieve superior surface finishes and enhance the overall performance of your molds.

Injection mold polishing is vital for achieving high-gloss surfaces that meet industry standards. It ensures smooth, aesthetic finishes while enhancing production efficiency. Proper polishing techniques also extend mold lifespan by reducing wear and corrosion. By selecting the right methods and adhering to best practices, you can achieve precise finishes that elevate product quality.

The long-term benefits of mold polishing are evident across industries. For example:

Key industry insights further highlight its significance:
- Mold polishing ensures high-quality molded parts with smooth, aesthetic surfaces.
- It facilitates swift demolding, improving production efficiency.
- Proper polishing increases resistance to wear and corrosion, extending mold longevity.
- Achieving precise finishes requires appropriate tools and adherence to best practices.

Investing in quality plastic injection mold polishing delivers long-term value. It reduces defects, enhances injection moulding surface finish, and ensures consistent gloss. By prioritizing precision and quality, you can meet the highest standards in manufacturing.

FAQ

What is the best polishing method for complex mold designs?

Ultrasonic or fluid polishing works best for intricate molds. These methods reach tight corners and hard-to-access areas without damaging the mold. They ensure a smooth, consistent finish for complex geometries.

How often should you polish an injection mold?

Polish your mold after every production cycle or when defects appear. Regular maintenance prevents wear, reduces defects, and extends the mold's lifespan.

Can you polish all mold materials?

Most mold materials, including steel, aluminum, and copper alloys, can be polished. However, softer materials may require gentler methods like chemical or fluid polishing to avoid damage.

How do you measure the surface finish of a mold?

Use tools like profilometers or optical microscopes to measure surface roughness. The roughness value (Ra) indicates the smoothness. Lower Ra values mean smoother surfaces.

Why is mold polishing important for high-gloss finishes?

Polishing removes imperfections, ensuring a mirror-like surface. This enhances the product's appearance, improves functionality, and reduces defects during production.
