Injection Mold Polishing for Perfect Surface Finishes

Injection mold polishing refines mold surfaces to create precise and smooth finishes. This process plays a critical role in manufacturing, ensuring that your products not only look flawless but also function effectively. Polished molds enhance the appearance of plastic parts, reduce wear, and make it easier to remove finished products. They also help prevent corrosion and minimize production delays. By incorporating polishing techniques, you can achieve high-gloss finishes that elevate both the quality and durability of your injection-molded items.

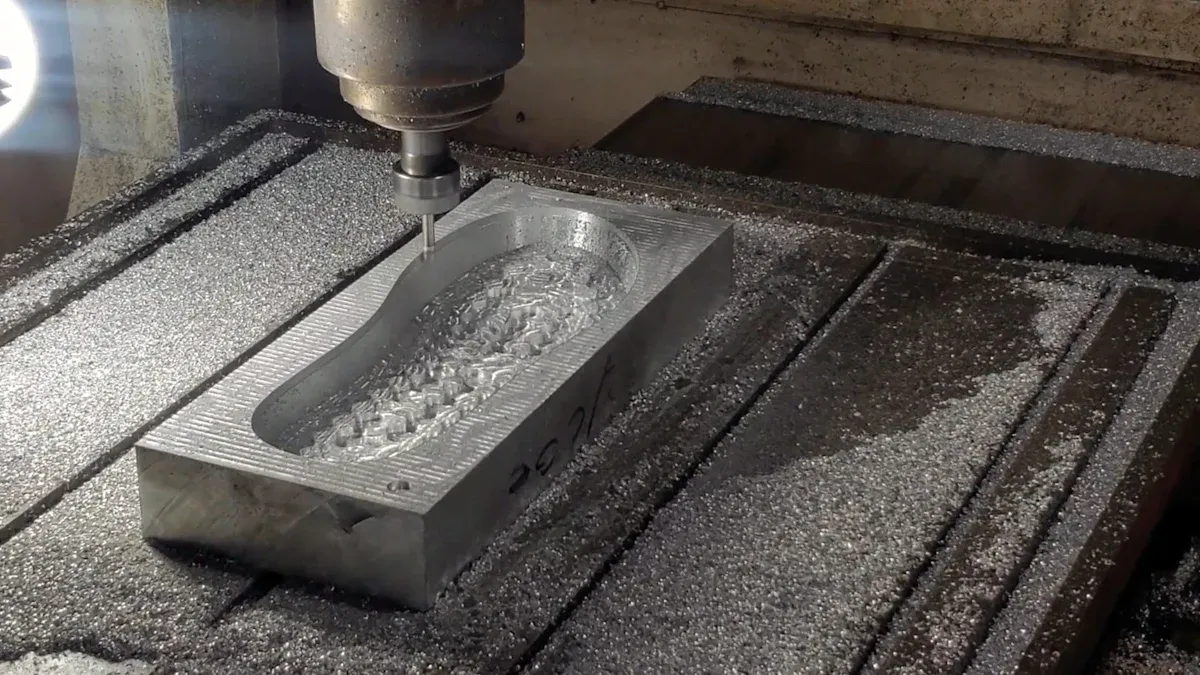

What is Injection Mold Polishing?

Definition and Purpose

Injection mold polishing refers to the process of refining the surface of a mold to achieve a specific texture or finish. This step is essential in manufacturing because it directly impacts the quality of the final product. By smoothing out imperfections, polishing ensures that the mold produces parts with consistent and flawless surfaces.

The Society of the Plastics Industry (SPI) has established guidelines to standardize surface finishes for plastic injection molds. These guidelines help manufacturers meet both aesthetic and functional requirements. For example, a high-gloss finish is often necessary for products like lenses or decorative items, while a dull finish may suit industrial components.

Here’s a table summarizing the SPI polishing grades and their corresponding surface roughness levels:

Polishing techniques vary depending on the desired finish. These include manual methods, abrasive flow polishing, and advanced techniques like ultrasonic or magnetic polishing. Each method plays a role in achieving the required surface roughness and texture.

Role in Plastic Injection Molding

In plastic injection molding, the mold's surface finish determines the appearance and functionality of the final product. Polished molds create smooth, high-quality surfaces that enhance the aesthetic appeal of molded parts. For instance, a mirror-like finish ensures clarity and brightness, which is crucial for high-gloss products like automotive components or consumer electronics.

Polishing also improves the performance of the mold itself. A well-polished mold reduces friction during the molding process, making it easier to release the finished part. This minimizes the risk of defects like scratches or warping. Additionally, polished molds resist corrosion and wear, extending their lifespan and reducing maintenance costs.

Tip: Always choose the polishing method that aligns with your product's requirements. For high-gloss finishes, prioritize techniques that achieve the lowest surface roughness levels.

Plastic injection mold polishing is not just about aesthetics. It ensures that the molds meet industry standards for durability and performance. By investing in proper polishing techniques, you can produce parts that stand out in both quality and appearance.

Why is Injection Mold Polishing Important?

Enhancing Aesthetics and Gloss

Injection mold polishing plays a vital role in creating visually appealing products. A polished mold surface ensures a high-gloss appearance, which enhances the product's overall quality and perceived value. For example, items like automotive parts or consumer electronics often require a reflective, mirror-like finish to stand out.

The surface finish directly impacts the gloss and smoothness of the final product. Faster injection speeds and optimal temperature settings improve surface aesthetics. Here’s a quick overview:

To achieve the desired high-gloss surfaces, you should select the right polishing techniques. Semi-gloss finishes can also help conceal mold marks while maintaining an attractive look.

Tip: A high-gloss appearance not only improves aesthetics but also adds a premium feel to your products.

Improving Functionality and Durability

Polishing plastic injection mold surfaces does more than enhance looks. It also improves functionality and durability. A smooth mold surface reduces friction during the molding process, making it easier to release parts without damage. This minimizes defects like scratches or warping.

Polished molds resist wear and corrosion, extending their lifespan. This durability reduces maintenance costs and ensures consistent performance over time. By investing in proper mold polishing techniques, you can create molds that produce high-quality parts repeatedly.

Reducing Defects and Ensuring Consistency

Defects like uneven textures or surface imperfections can ruin a product's quality. Mold polishing eliminates these issues by refining the mold surface. This ensures that every part produced has a consistent finish.

Consistency is crucial in industries like medical devices or automotive manufacturing, where precision matters. A polished mold surface ensures that each product meets strict quality standards. This reduces waste and improves overall efficiency in production.

Note: Consistent surface finishes not only improve product quality but also enhance customer satisfaction.

Types of Injection Mold Polishing Methods

When it comes to achieving the perfect surface finish, understanding the types of mold polishing methods is essential. Each method offers unique advantages and is suited for specific applications. Let’s explore three key techniques: mechanical polishing, chemical polishing, and ultrasonic polishing.

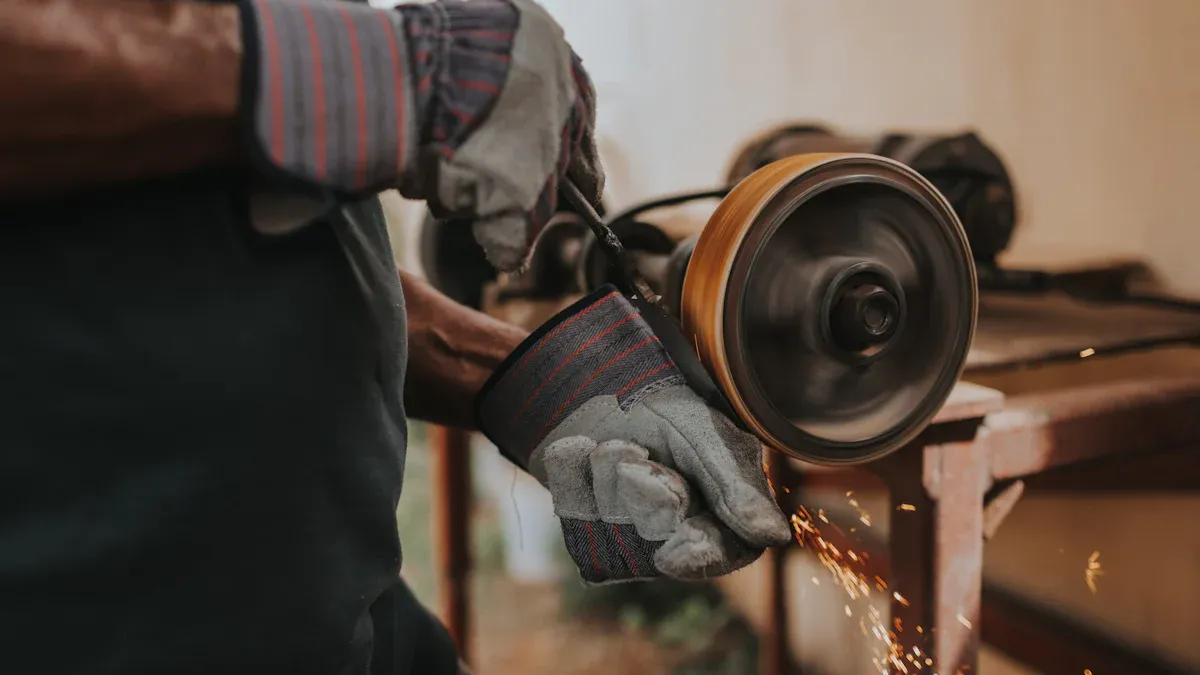

Mechanical Polishing

Mechanical polishing is one of the most common methods used in mold polishing. It involves the use of abrasive tools, such as sandpaper, polishing stones, or buffing wheels, to physically remove imperfections from the mold surface. This method is highly effective for achieving a smooth and reflective finish, especially on flat or slightly curved surfaces.

Mechanical polishing improves several surface characteristics, as shown in the table below:

This method is ideal for molds requiring high-gloss finishes, such as those used in automotive or consumer electronics. However, it requires skilled operators to ensure consistency and avoid over-polishing, which can damage the mold surface.

Tip: Use progressively finer abrasives to achieve the desired level of smoothness without compromising the mold's integrity.

Chemical Polishing

Chemical polishing relies on selective chemical reactions to smooth the mold surface. In this process, a chemical agent dissolves the raised areas of the surface more quickly than the recessed areas, resulting in a uniform finish. This method is particularly effective for complex molds with intricate details that are difficult to polish mechanically.

Studies have shown that chemical polishing significantly reduces surface roughness. For example:
1. Research on zirconia surfaces demonstrated that most polishing kits effectively reduced roughness.
2. Sequential polishing steps achieved surface finishes comparable to or better than the reference standard.
3. The final steps were critical in achieving the desired smoothness.

Chemical polishing is a time-efficient method, making it suitable for high-volume production. It also enhances the mold's corrosion resistance, which extends its lifespan. However, you must handle chemical agents carefully and follow safety protocols to avoid hazards.

Note: Always test the chemical agent on a small area of the mold to ensure compatibility with the mold material.

Ultrasonic Polishing

Ultrasonic polishing uses high-frequency vibrations to refine the mold surface. This method involves placing the mold in a liquid medium, where ultrasonic waves create microscopic abrasions that polish the surface. It is particularly effective for achieving a high-gloss finish on intricate or hard-to-reach areas.

The optimal frequency range for ultrasonic polishing lies between 16,000 and 25,000 Hz, as shown below:

Ultrasonic polishing offers several advantages. It minimizes manual effort, ensures uniform results, and reduces the risk of over-polishing. This method is ideal for molds used in industries like medical devices, where precision and smoothness are critical.

Tip: Use ultrasonic polishing for molds with complex geometries to achieve consistent results without damaging delicate features.

By understanding these types of mold polishing methods, you can select the one that best suits your mold's material, complexity, and surface finish requirements. Each method plays a vital role in ensuring that your molds produce high-quality, polished parts.

Electrolytic Polishing

Electrolytic polishing is a highly effective method for refining mold surfaces. This process uses an electrochemical reaction to remove material from the mold surface, resulting in a smooth and reflective finish. By immersing the mold in an electrolyte solution and applying an electric current, the high points on the surface dissolve faster than the low points. This creates a uniform and polished surface.

One of the key advantages of electrolytic polishing is its ability to improve surface smoothness significantly. Measurements show that surface roughness (Ra) can improve by 10% to 30%, with maximum improvements reaching up to 50%. The table below highlights these improvements:

For molds with an initial surface roughness of 80 Ra, electrolytic polishing can achieve a maximum Ra of 40, as shown here:

This method is particularly useful for molds with intricate designs or hard-to-reach areas. It ensures a consistent finish across the entire mold surface, enhancing both aesthetics and functionality. Additionally, the process improves the mold's corrosion resistance, extending its lifespan and reducing maintenance needs.

Tip: To achieve the best results, ensure the electrolyte solution is compatible with the mold material. Regularly monitor the process to avoid over-polishing, which can damage the mold.

Electrolytic polishing is ideal for achieving high-gloss finishes on molds used in industries like automotive and consumer electronics. Its ability to produce a smooth and reflective surface makes it a preferred choice for applications requiring precision and quality.

Magnetic Polishing

Magnetic polishing is another advanced technique used to refine mold surfaces. This method employs magnetic fields to manipulate abrasive particles, which polish the mold surface. The process involves placing the mold in a magnetic field and introducing ferromagnetic particles coated with abrasives. These particles move rapidly under the influence of the magnetic field, removing imperfections and creating a smooth finish.

One of the main benefits of magnetic polishing is its ability to handle complex geometries. The abrasive particles can reach intricate details and tight corners, ensuring a uniform finish across the mold. This makes it an excellent choice for molds with intricate designs or delicate features.

Magnetic polishing also minimizes manual effort and reduces the risk of over-polishing. The process is highly controlled, ensuring consistent results without damaging the mold surface. Additionally, it enhances the mold's wear resistance and durability, making it suitable for high-volume production.

Note: Magnetic polishing works best on molds made from ferromagnetic materials. Ensure the abrasive particles are appropriate for the desired surface finish.

This method is particularly effective for achieving a polished surface with a high level of smoothness. It is commonly used in industries like medical devices and precision engineering, where accuracy and quality are critical.

By understanding the unique advantages of electrolytic and magnetic polishing, you can choose the method that best suits your mold's requirements. Both techniques play a crucial role in achieving high-quality, polished molds that deliver exceptional performance and aesthetics.

How to Choose the Right Polishing Method

Factors to Consider (e.g., Mold Material, Complexity, Surface Finish Requirements)

Choosing the right polishing method depends on several factors. Each mold has unique requirements based on its material, design, and intended use. To make an informed decision, you should evaluate the following considerations:

• Mold Material: The hardness, malleability, and thermal properties of the mold material influence the choice of polishing techniques. For example, harder materials may require mechanical or ultrasonic polishing for effective results.
• Complexity of the Mold: Intricate designs or tight corners may benefit from methods like ultrasonic or magnetic polishing, which can reach hard-to-access areas.
• Surface Finish Requirements: The desired gloss level and smoothness of the final product play a significant role. High-gloss finishes often require advanced techniques like electrolytic polishing.
• Production Needs: Consider the production quantity and the mold's durability. High-volume production molds may need polishing methods that enhance wear resistance.
• Environmental Factors: If the product will face harsh conditions, such as UV exposure, select a finish that offers additional protection.

These factors ensure that the chosen method aligns with the mold's material and design while meeting surface quality standards.

Balancing Cost, Time, and Desired Gloss Levels

When selecting a polishing method, balancing cost, time, and the desired gloss level is crucial. Each method offers unique benefits, but some may be more cost-effective or time-efficient than others. The table below highlights measurable factors to consider:

For example, mechanical polishing may be cost-effective for simple molds, but it requires skilled operators and more time. On the other hand, chemical polishing offers faster results but involves higher material costs. Advanced methods like ultrasonic or magnetic polishing provide excellent smoothness and gloss but may require specialized equipment.

To achieve the best balance, prioritize your product's requirements. If high-gloss finishes are essential, invest in methods that deliver superior surface quality. For simpler needs, opt for cost-effective techniques that still meet your standards.

Tip: Always test the chosen method on a sample mold surface to ensure it meets your expectations for finish and durability.

Best Practices for Polishing Plastic Injection Mold

Maintaining Tool Cleanliness

Keeping your tools clean is essential for achieving consistent results in injection mold polishing. Dirt, debris, or leftover abrasive particles can scratch the mold surface, reducing the overall surface quality. Regular cleaning ensures that your tools perform optimally and prevents contamination during the polishing process.

Standards like ASTM E2142 and ISO 4967 emphasize the importance of cleanliness in maintaining high-quality finishes. These standards outline methods for evaluating tool cleanliness, such as using microscopic examination to detect non-metallic inclusions. The table below highlights some key standards:

To maintain cleanliness, always remove abrasive particles between polishing steps. This prevents scratches and ensures a smooth surface finish. Use specialized cleaning tools for intricate mold features to avoid altering critical details.

Tip: Periodically inspect your tools and mold surface during polishing to identify imperfections early.

Ensuring Consistency in Polishing Techniques

Consistency in your polishing methods directly impacts the surface finish and overall product quality. Uniform pressure and motion during polishing help avoid uneven surfaces or damage to the mold. Advanced techniques, combined with accurate monitoring of surface roughness, ensure that your mold meets industry standards.

Here are some best practices for effective mold polishing:
- Start with medium-grit polishing stones to remove machining marks, then progress to finer grits for a smoother finish.
- Apply uniform pressure and motion to avoid uneven polishing.
- Use specialized tools for complex features without altering critical details.
- Inspect the mold surface periodically to identify and correct imperfections.

By following these steps, you can achieve a high-gloss finish while maintaining the mold's integrity. Consistency not only enhances the mold's performance but also ensures that every product meets the desired surface quality.

Note: Always monitor surface roughness parameters to maintain optimal polishing results.

Following Safety Measures

Safety should always be a priority during mold polishing. Mishandling tools or ignoring safety protocols can lead to accidents or damage to the mold. Following established guidelines ensures a safe and efficient polishing process.

Here are some essential safety measures:
1. Avoid contact with machinery during operation to prevent accidents.
2. Wait for equipment to stop before addressing any issues.
3. Ensure only trained personnel operate polishing equipment.
4. Inspect electric tools for damage before use.
5. Wear proper attire, including gloves and safety goggles, to minimize risks.
6. Keep passageways clear to ensure safe movement in the workshop.
7. Turn off equipment after use to prevent unintended operation.

By adhering to these guidelines, you can create a safe working environment while achieving high-quality finishes. Proper safety practices protect both you and your equipment, ensuring a smooth and efficient polishing process.

Reminder: Report any damaged safety devices immediately to avoid potential hazards.

Challenges in Injection Mold Polishing and Solutions

Common Issues in Achieving High-Gloss Finishes

Achieving a high-gloss surface finish in injection mold polishing often comes with challenges. These issues can affect the quality and consistency of your final product. One common problem is the buildup of material on the mold surface. This buildup can lead to uneven gloss levels, making the product appear inconsistent. Another issue is the variation in texture geometry and depth, which can cause noticeable differences in gloss across the surface.

Inconsistent wall stock also plays a role. When the thickness of the mold walls varies, the pressure during the molding process changes, leading to uneven gloss. Inadequate venting is another factor. Poor venting can create dull or shiny spots on the molded part, reducing its overall quality. Additionally, insufficient cooling can result in hotter cavity details, which often appear shinier than the rest of the surface. Lastly, deflection of tooling components can create dull areas, further complicating the polishing process.

Gloss measurement is essential for maintaining product quality. Using a Gloss Meter, you can measure gloss levels in Gloss Units (GU) by assessing the ratio of incident to reflected light. Measurements at different angles, such as 20, 60, or 85 degrees, help ensure accuracy. The 60-degree angle is the most commonly used for evaluating surface appearance.

Practical Solutions to Overcome Challenges

You can overcome these challenges by following practical steps. Start by marking all shutoffs, corners, and edges that need to remain sharp. Clearly identify areas requiring texture and specify the depth and type of texture needed. Knowing the mold steel type and hardness is also crucial for selecting the right polishing method.

Ensure all vent runners are lapped and polished to improve venting. Mask critical areas to protect them during the polishing process. Pre-plan the polishing of each insert to safeguard edges and avoid damage. Always verify that cavities and components are clean before starting the polishing process. This prevents contamination and ensures a consistent surface finish.

Document all orders and information in writing to avoid miscommunication. Itemize all parts sent for polishing to prevent loss. Contact your polisher early for recommendations. This can save time and reduce costs. Finally, avoid unskilled polishing, as it may require rework and increase expenses.

By addressing these challenges with careful planning and attention to detail, you can achieve a high-gloss finish that meets your quality standards.

Quality Control in Injection Moulding Surface Finish

Methods for Inspecting Surface Quality

Ensuring a flawless injection moulding surface finish requires precise inspection methods. These methods help you identify imperfections and maintain consistent quality. Here are three effective techniques for inspecting surface quality:

Tactile inspection allows you to measure physical dimensions and surface flatness accurately. Automated optical inspection (AOI) is ideal for detecting visible flaws, such as scratches or pits, on a large scale. Surface profilometry provides detailed insights into surface texture, making it a valuable tool for achieving high-quality finishes. By combining these methods, you can ensure that your injection mold polishing process meets industry standards.

Tip: Use automated tools like AOI for faster and more consistent inspections, especially in high-volume production.

Measuring Surface Roughness and Gloss Levels

Measuring surface roughness and gloss levels is essential for maintaining quality control in mold polishing. Surface roughness determines the texture of the injection moulding surface finish, while gloss reflects its visual appeal. You can use specific parameters to evaluate these aspects accurately:

Ra is the most widely used parameter for assessing surface roughness. It provides a simple average of the surface's peaks and valleys. For gloss measurement, a Gloss Meter evaluates the ratio of reflected to incident light, offering results in Gloss Units (GU). This ensures that your injection moulding surface finish meets both functional and aesthetic requirements.

Note: Regularly calibrate your measuring instruments to maintain accuracy and reliability.

Injection mold polishing is essential for achieving a high-quality surface finish that enhances both the appearance and functionality of your products. A polished mold surface ensures a glossy surface, creating a high-quality appearance that appeals to customers. Proper polishing techniques also improve durability and reduce defects, ensuring high-polish parts meet industry standards.

Adopting best practices in polishing offers long-term benefits. These include sustainability compliance, cost efficiency, and customer retention, as shown below:

By following these practices and maintaining quality control, you can consistently produce high-polish parts with a flawless, glossy surface. This commitment ensures your products stand out with a high-quality appearance while meeting functional demands.

FAQ

What is the best polishing method for high-gloss finishes?

For high-gloss finishes, you should consider ultrasonic or electrolytic polishing. These methods provide smooth, reflective surfaces with minimal imperfections. Ultrasonic polishing works well for intricate designs, while electrolytic polishing ensures uniformity across the mold.

Tip: Test the chosen method on a sample mold to confirm it meets your gloss requirements.

How often should you polish injection molds?

You should polish molds regularly, depending on usage and production volume. High-use molds may need polishing after every production cycle. For less frequent use, inspect the mold for wear or buildup and polish as needed to maintain quality.

Note: Regular maintenance extends the mold's lifespan and ensures consistent product quality.

Can polishing damage the mold?

Improper polishing can damage molds. Over-polishing may alter dimensions or remove critical details. Using the wrong abrasive or technique can also scratch or weaken the surface. Always follow best practices and use skilled operators to avoid these issues.

Reminder: Protect edges and critical areas during polishing to prevent damage.

What tools are essential for mold polishing?

Essential tools include polishing stones, sandpaper, buffing wheels, and ultrasonic polishers. For advanced techniques, you may need chemical agents or magnetic polishing equipment. Choose tools based on the mold material and desired finish.

Tip: Keep tools clean and inspect them regularly to ensure optimal performance.

How do you measure the quality of a polished mold?

You can measure quality using tools like a Gloss Meter for gloss levels and a surface profilometer for roughness. These instruments provide precise data on surface texture and appearance, ensuring the mold meets industry standards.

Note: Regularly calibrate your measuring devices for accurate results.
