How to Use Ultra-Precision CNC Machining in Mold Making

Ultra-Precision CNC Machining allows you to achieve unmatched accuracy when creating mold components. Its advanced capabilities make it essential for producing injection molds with intricate designs and tight tolerances. For example, machining accuracy improves by 25% with nano-coated cubic boron nitride tools, while surface roughness can reach Ra0.2um. These advancements not only enhance the quality of molds but also extend their lifespan. With this technology, you can reduce mold-related costs by 40% and shorten the mold development cycle by nearly the same percentage. This approach transforms mold production, enabling faster, more precise, and cost-effective manufacturing.

Ultra-Precision CNC Machining in Mold Making

Defining Ultra-Precision CNC Machining

Ultra-precision CNC machining refers to advanced manufacturing techniques that achieve extremely tight tolerances and exceptional surface finishes. These methods ensure parts fit together seamlessly, which is critical for industries like aerospace and medical devices. Precision tolerances define the acceptable range of dimensions for components, ensuring repeatability and interchangeability. Technical parameters include geometric tolerances such as flatness and roundness, surface finish measured in Ra, and dimensional tolerances like unilateral and bilateral limits. By mastering these specifications, you can produce mold components with unmatched accuracy and reliability.

Importance of Precision in Mold Components

Precision plays a vital role in mold component fabrication. Advanced tools like CAD and CAM software enhance accuracy during the injection molding process. These technologies identify potential defects before production begins, ensuring components meet strict quality standards. Improved precision reduces waste and boosts production efficiency. For example, molds created with ultra-precision CNC machining consistently meet tight tolerances, resulting in fewer rejected parts and smoother assembly processes. This level of accuracy is essential for industries where even minor deviations can lead to significant issues.

Applications in Injection Mold Production

Ultra-precision CNC machining has revolutionized injection mold production across various industries. In medical device manufacturing, precision molds are used to create artificial joints, dental equipment, and surgical instruments. These molds enhance production efficiency while maintaining high-quality standards. In aerospace, molds process precision carbon fiber parts, ensuring reliable aircraft performance. Digital technology integrates intelligent manufacturing and digital modeling, enabling the design of complex structures with increased efficiency. Additionally, intelligent production systems use IoT, AI, and robotics to collect and analyze data in real time, reducing delays and improving overall productivity.

Techniques in Ultra-Precision CNC Machining

High-Speed CNC Machining

High-speed CNC machining accelerates production while maintaining precision. You can achieve spindle speeds exceeding 60,000 RPM, which significantly boosts material removal rates. This technique reduces machining time by up to 70% compared to traditional methods. It also delivers exceptional surface finishes, with roughness values as low as Ra 0.1–0.4 µm. These smooth surfaces minimize the need for secondary finishing, saving you time and resources. Adaptive control systems ensure dimensional accuracy, reducing scrap rates and improving overall efficiency. High-speed machining is ideal for mold components requiring tight tolerances and consistent quality.

Tip: To maximize the benefits of high-speed machining, ensure your equipment supports advanced spindle speeds and adaptive controls.

5-Axis Machining for Complex Geometries

5-axis machining allows you to create intricate mold components with ease. This technique enables unconventional cutting angles, making it perfect for features like overhangs and undercuts. You can process mold inserts, cavity cores, and die components with fewer setups, enhancing accuracy and surface finish. A single machine can handle tasks like squaring, waterline drilling, and rough and finish milling. Continuous surfacing with optimal cutter engagement ensures superior finishes and tighter tolerances. In high-precision mold manufacturing, 5-axis machining is essential for achieving complex cavity shapes and precise draft angles.

Note: Using 5-axis machining reduces polishing time and improves efficiency, making it a valuable tool for mold makers.

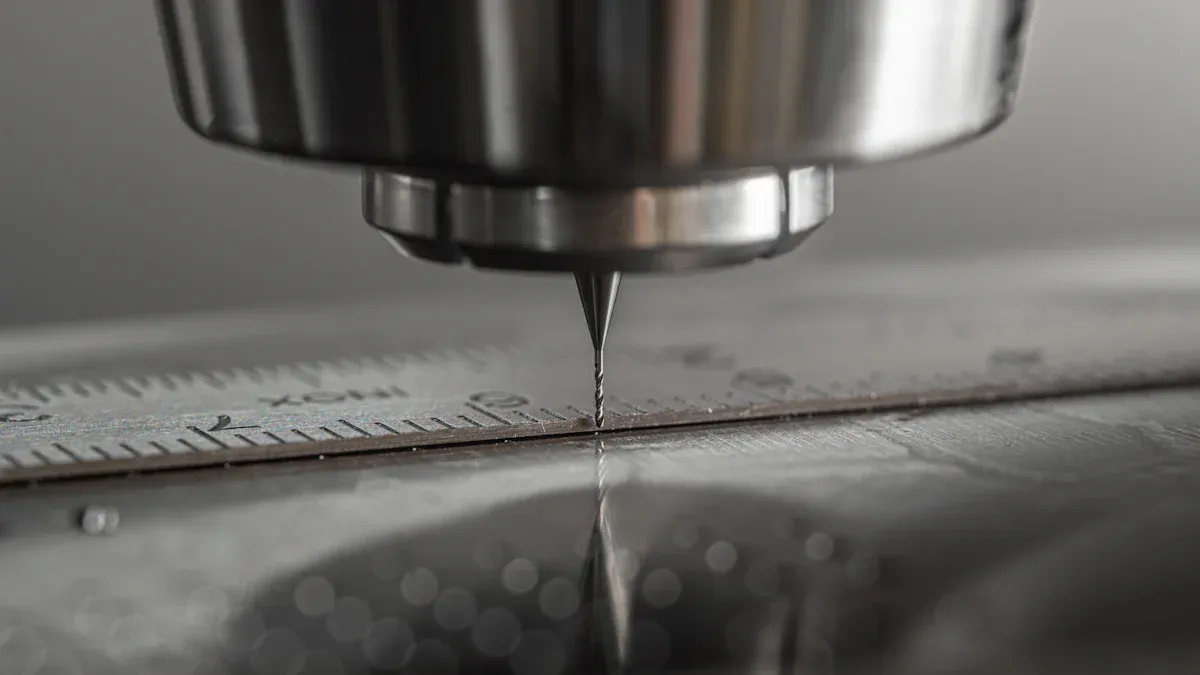

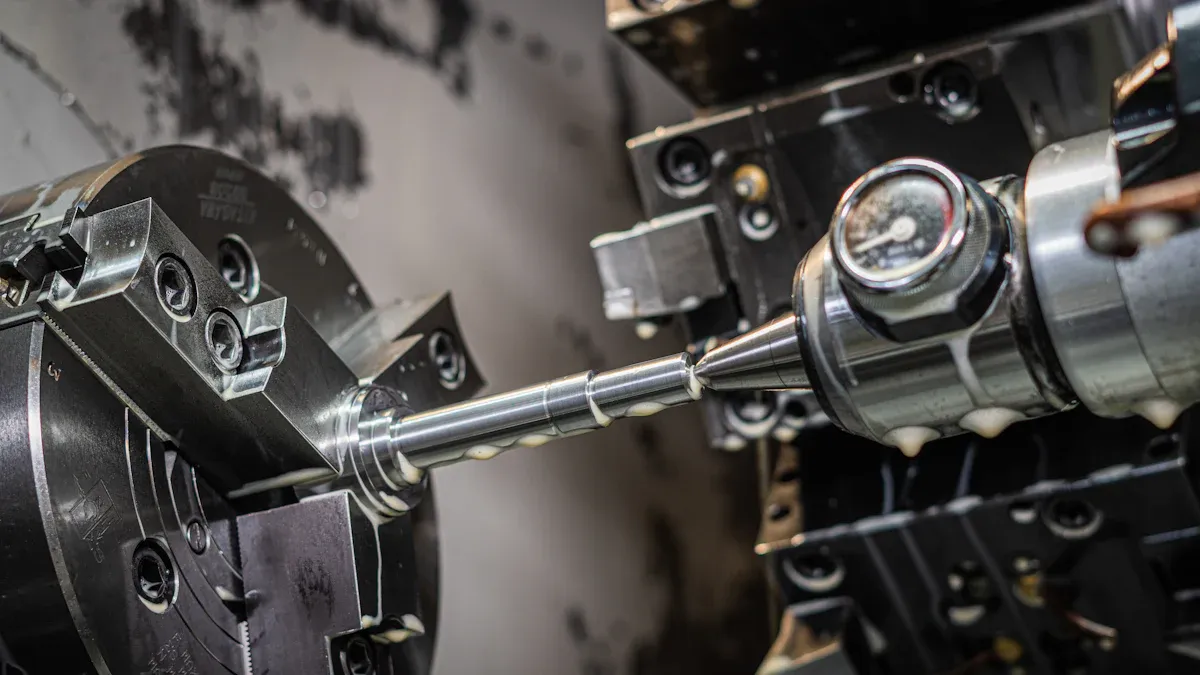

Micro-Machining for Fine Details

Micro-machining focuses on creating extremely small and detailed features in mold components. You can use ultra-precision turning, grinding, and milling to achieve tight tolerances and smooth surfaces. These techniques refine workpieces with precise control over tool movement and cutting parameters. Electrochemical machining (ECM) removes material without mechanical stress, making it ideal for intricate shapes. Micro-electroplating deposits thin metal layers, ensuring high precision and adhesion for specialized applications. Micro-machining is particularly useful for molds used in electronics and medical devices, where fine details are critical.

Tip: When working with micro-machining, prioritize tools and processes that minimize mechanical stress to maintain the integrity of delicate features.

Surface Finishing for Mold Components

Surface finishing plays a critical role in the performance and longevity of mold components. When you focus on achieving the right surface finish, you enhance the quality of the molds produced through ultra-precision CNC machining. This process ensures that the molds meet the highest standards of durability and functionality.

Proper surface finishing offers several benefits:
- It enhances corrosion resistance, which is essential for extending the lifespan of molds.
- It reduces friction, improving the performance and durability of the machined parts.
- It improves sealing capabilities, ensuring molds function effectively over time.

You can achieve these results by using advanced surface finishing techniques tailored to the specific requirements of your mold components.

Techniques for Surface Finishing

To achieve optimal results, you should consider the following surface finishing techniques:

1. Polishing: Polishing removes surface imperfections and creates a smooth, reflective finish. This technique is ideal for molds used in applications requiring high clarity, such as optical lenses or transparent plastic parts.
2. Grinding: Grinding ensures precise dimensional accuracy and smooth surfaces. It is particularly useful for molds with tight tolerances.
3. Electroplating: Electroplating adds a thin layer of metal to the mold surface, enhancing its hardness and resistance to wear. This technique is commonly used for molds exposed to high levels of stress.
4. Texturing: Texturing creates patterns or designs on the mold surface. This technique is often used to improve the aesthetic appeal of molded products or to add functional properties like grip.

Tip: Always match the surface finishing technique to the material and application of your mold. This ensures you achieve the desired results without compromising the integrity of the component.

Importance of Surface Finishing in Ultra-Precision CNC Machining

Surface finishing is not just about aesthetics. It directly impacts the functionality and efficiency of your molds. A well-finished mold reduces the risk of defects in the final product. It also minimizes wear and tear during the molding process, saving you time and money on maintenance.

In ultra-precision CNC machining, surface finishing complements the machining process by refining the final product. For example, after machining a mold cavity, polishing can remove microscopic tool marks, ensuring a flawless surface. This step is crucial for molds used in industries like medical devices and electronics, where precision and quality are non-negotiable.

By prioritizing surface finishing, you can maximize the benefits of ultra-precision CNC machining. This approach not only enhances the performance of your molds but also ensures they remain reliable over extended periods of use.

Materials for Mold Components

Metals Commonly Used in Mold Making

Metals are the backbone of mold making due to their strength, durability, and machinability. Low carbon steel, stainless steel, and steel alloys are among the most popular choices. These materials offer excellent tensile strength and hardness, making them ideal for molds that endure high stress during production.

Permanent mold casting is a common method for shaping non-ferrous metals like aluminum, copper, and magnesium alloys. This process achieves higher dimensional accuracy and surface quality compared to sand casting. It also reduces costs for large production runs.

Note: The choice of metal significantly impacts the mold's performance and lifespan. While harder metals enhance durability, excessive hardness can reduce ductility, affecting the mold's serviceability.

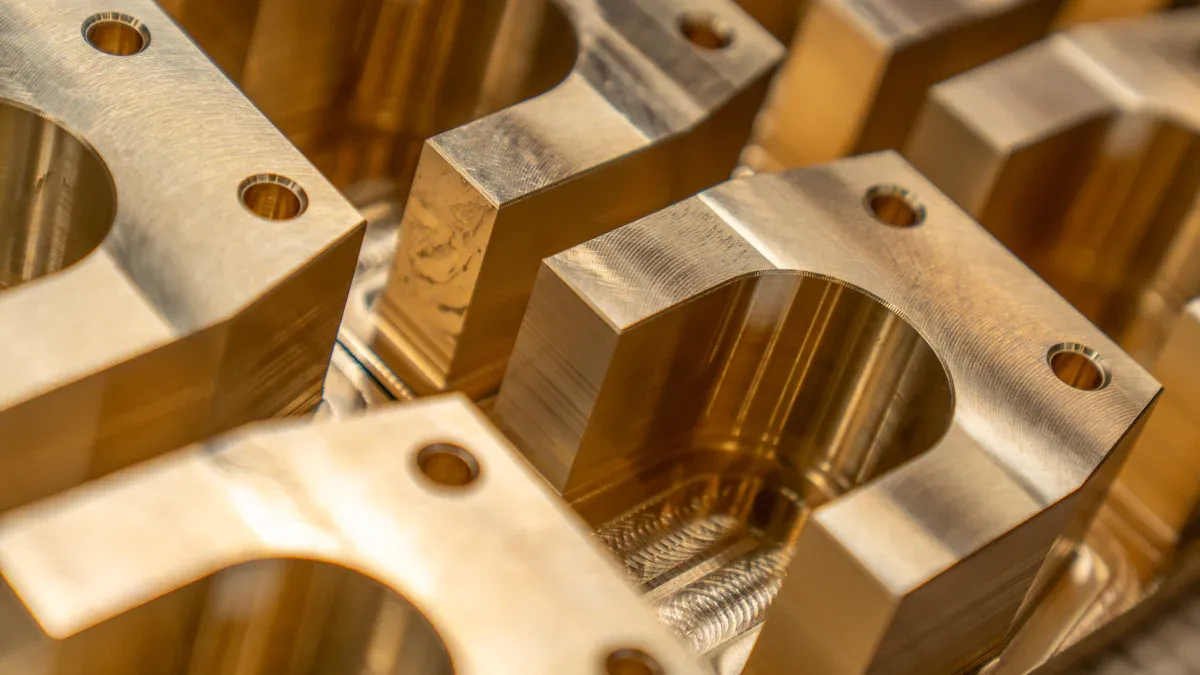

Specialty Alloys for Precision Applications

Specialty alloys play a critical role in high-precision mold applications. Copper alloys, for instance, excel in heat transfer, ensuring consistent cooling and reducing defects. Aluminum molds, on the other hand, can cut production cycle times by up to 30%, making them ideal for industries requiring both precision and high output.

A study on Dursan-coated stainless steel molds demonstrated their durability. Over four months of daily injection molding, these molds showed no signs of wear or degradation. This highlights the long-term benefits of using advanced alloys in ultra-precision machining.

Non-Metal Materials for Unique Mold Requirements

Non-metal materials like ABS, PC, and PA12 are increasingly used in ultra-precision machining for molds. These materials are lightweight, cost-effective, and suitable for specialized applications. For example, ABS offers excellent impact resistance, while PC provides superior tensile strength.

Non-metal materials used in ultra precision machining provide unique advantages for molds requiring lightweight and flexible designs. They are particularly useful in electronics and medical device manufacturing.

Benefits of Ultra-Precision CNC Machining

Achieving Exceptional Accuracy and Consistency

Ultra-precision CNC machining ensures that every mold component meets exact specifications. You can achieve tolerances as tight as ±0.001 mm, which guarantees consistent results across production runs. This level of precision eliminates errors that could compromise the functionality of the final product. For example, molds used in medical devices require flawless accuracy to ensure patient safety and product reliability.

Advanced machining techniques, such as five-axis machining, allow you to create complex shapes with minimal setup time. This reduces the risk of dimensional inconsistencies and enhances overall accuracy. Automation further improves consistency by eliminating human error. Robotic systems and 'lights-out manufacturing' streamline operations, ensuring that every mold component is produced to the highest standards.

Tip: To maintain exceptional accuracy, regularly calibrate your CNC equipment and monitor tool wear. This ensures consistent performance over time.

Reducing Production Time and Costs

Ultra-precision CNC machining significantly accelerates mold production. High-speed machining techniques enable faster material removal rates, cutting production time by up to 70%. You can complete complex machining tasks in a fraction of the time required by traditional methods. This efficiency reduces lead times, allowing you to meet tight deadlines without compromising quality.

Automation plays a key role in reducing costs. Robotic systems handle repetitive tasks, freeing up skilled operators for more complex work. This minimizes labor expenses and boosts productivity. Additionally, precise machining reduces material waste, saving you money on raw materials. By investing in ultra-precision CNC machining, you can lower production costs while maintaining exceptional quality.

Note: Implementing automation in your machining processes not only reduces costs but also enhances scalability, making it easier to handle large production volumes.

Enhancing Mold Durability and Performance

Durability is a critical factor in mold making. Ultra-precision CNC machining produces molds with superior surface finishes, reducing wear and tear during production. Smooth surfaces minimize friction, which extends the lifespan of the mold and improves its performance. For example, molds used in aerospace applications must withstand high stress and temperature fluctuations. Precision machining ensures these molds remain reliable under demanding conditions.

Specialty alloys and advanced surface finishing techniques further enhance durability. Copper alloys improve heat transfer, while electroplating adds a protective layer to the mold surface. These enhancements reduce maintenance requirements and ensure consistent performance over time. By prioritizing durability, you can maximize the return on your investment in mold production.

Tip: Choose materials and surface finishing techniques that align with your mold's application to optimize durability and performance.

Enabling Complex and Custom Designs

Ultra-precision CNC machining empowers you to create molds with intricate and custom designs. This capability allows you to meet the demands of industries requiring unique and highly detailed components. Whether you are producing molds for medical devices, aerospace parts, or consumer electronics, ultra-precision techniques ensure that even the most complex designs are achievable.

How Ultra-Precision CNC Machining Enables Complexity

You can achieve complex geometries and custom designs by leveraging advanced machining techniques. These methods allow you to work with tight tolerances and intricate details that traditional machining cannot handle. For example, 5-axis machining enables you to cut at unconventional angles, making it possible to create undercuts, overhangs, and other challenging features. Micro-machining further enhances your ability to produce fine details, ensuring that every component meets exact specifications.

Did You Know?
Custom Mold & Design, a company with over 42 years of experience, specializes in creating high-precision molds. Their expertise includes multi-cavity, hot runner, and two-shot molds, showcasing the versatility of ultra-precision CNC machining. These molds often last up to 20 years and can achieve 20 million cycles, proving their durability and precision.

Benefits of Custom and Complex Mold Designs

When you adopt ultra-precision CNC machining, you unlock several advantages for custom and complex mold designs:

• Enhanced Product Functionality: Custom molds allow you to design components tailored to specific applications, improving their performance.
• Improved Aesthetics: Intricate designs and smooth finishes enhance the visual appeal of molded products.
• Increased Efficiency: Multi-cavity molds enable you to produce multiple parts simultaneously, reducing production time.
• Durability: High-precision molds maintain their quality over extended use, minimizing downtime and maintenance costs.

Real-World Applications

Ultra-precision CNC machining supports a wide range of industries by enabling the production of complex and custom molds:

• Medical Devices: You can create molds for surgical instruments, prosthetics, and diagnostic equipment with intricate features.
• Aerospace: Precision molds ensure the reliability of components like turbine blades and structural parts.
• Consumer Electronics: Custom molds help you produce sleek and functional designs for devices like smartphones and wearables.

By embracing ultra-precision CNC machining, you can push the boundaries of mold design. This technology not only enhances your ability to create complex and custom molds but also ensures that these molds deliver exceptional performance and longevity.

Practical Steps for Implementing CNC Machining

Selecting the Right CNC Equipment

Choosing the right CNC equipment is crucial for achieving precision in mold making. You should evaluate key technical criteria to ensure the machine meets your production needs. Spindle speed directly affects surface smoothness, while feed rate determines the material removal rate. Depth of cut influences overall machining efficiency. Balancing these parameters ensures optimal results.

High-quality cutting tools also play a significant role. They improve the mold's surface finish and enhance machine efficiency. Regular maintenance of CNC machines is essential for consistent performance. A robust maintenance strategy minimizes downtime and ensures high-quality mold production.

Tip: Monitor cutting parameters like spindle speed and feed rate to maintain consistent machining outcomes.

Optimizing CAD/CAM Software for Mold Design

CAD/CAM software is a powerful tool for improving mold design efficiency. It allows you to optimize designs, select suitable materials, and enhance machining processes. Features like design libraries and conformal cooling streamline workflows and reduce waste.

You can also use advanced features like color-coded graphical representations to identify inaccuracies and tool wear. This improves the accuracy of your designs and reduces errors during production. By implementing these strategies, you can significantly reduce costs and improve your competitiveness in the market.

Did You Know? Efficient CAD/CAM software can cut mold design time by up to 30%, enabling faster production cycles.

Training Operators for Precision Machining

Skilled operators are vital for achieving precision in CNC machining. Training programs aligned with industry standards ensure operators are job-ready. Certifications like NIMS validate core competencies in CNC skills. Specialized roles, such as CNC lathe and mill operations, require specific certifications.

Training programs also focus on practical skills, ensuring operators can handle advanced CNC equipment. For example, the Advanced Machining program boasts a 96% job placement rate for graduates. Experienced machinists earn between $50,000 and $80,000 annually, highlighting the value of skilled professionals in this field.

Tip: Invest in operator training to improve machining accuracy and reduce errors in mold production.

Ensuring Quality Control and Inspection

Quality control and inspection are essential for ensuring the success of ultra-precision CNC machining in mold making. By implementing robust inspection protocols, you can maintain high standards and prevent costly errors during production. These processes help verify that every mold component meets the required specifications and performs as intended.

To achieve effective quality control, you should focus on three key areas: design, materials, and processes. Design verification ensures that the mold design aligns with the intended specifications. Material verification confirms that the materials used meet the necessary standards for durability and performance. Process verification monitors the mold-making process to ensure it follows established protocols.

You can enhance inspection accuracy by combining traditional methods with advanced technology. Skilled technicians perform visual inspections at various stages to identify surface defects or irregularities. Technological aids, such as Computer-Aided Inspection (CAI) and Coordinate Measuring Machines (CMM), provide precise measurements of complex geometries. Non-Destructive Testing (NDT) methods, like ultrasonic and X-ray testing, allow you to inspect molds without causing damage.

Tip: Regularly calibrate your inspection equipment to maintain accuracy and reliability.

When issues arise, standardized correction protocols help you address deficiencies quickly. Root cause analysis identifies the underlying problems, enabling you to implement effective solutions. Continuous improvement processes ensure that feedback from inspections leads to better quality over time.

Regular mold maintenance also plays a critical role in quality control. By keeping molds in peak condition, you can prevent defects and extend their lifespan. Optical inspection systems offer non-contact measurement, making it easier to detect imperfections without risking damage.

By prioritizing quality control and inspection, you can ensure that your molds meet the highest standards of precision and reliability. This approach not only enhances product quality but also reduces waste and production costs.

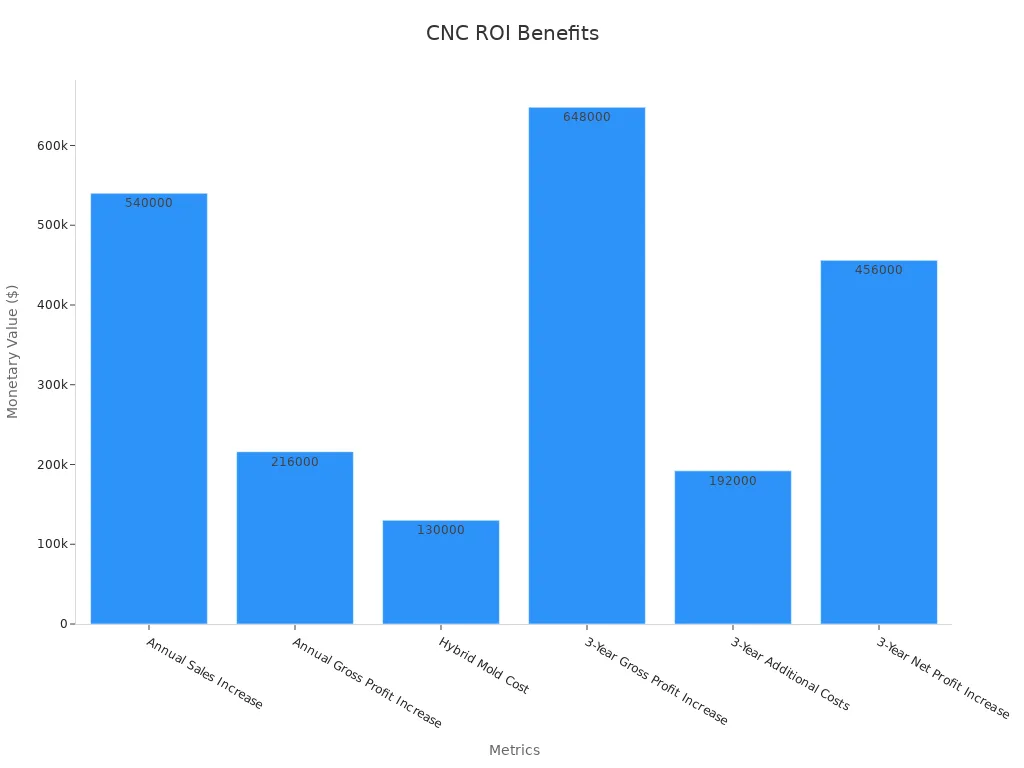

Ultra-precision CNC machining transforms mold making by delivering unmatched accuracy, efficiency, and durability. You can achieve exceptional results with techniques like 5-axis machining, micro-machining, and advanced surface finishing. These methods reduce production time, enhance mold performance, and enable complex designs.

The financial benefits are equally compelling:

By adopting this technology, you can elevate mold production, reduce costs, and stay competitive in today’s demanding markets.

FAQ

What industries benefit the most from ultra-precision CNC machining?

Industries like aerospace, medical devices, and electronics rely heavily on ultra-precision CNC machining. You can use it to produce high precision parts with tight tolerances, ensuring reliability and performance in critical applications.

How does ultra-precision CNC machining achieve tight tolerances?

This process uses advanced equipment and techniques like 5-axis machining and micro-machining. These methods allow you to control dimensions with extreme accuracy, achieving tolerances as tight as ±0.001 mm.

Can ultra-precision CNC machining handle complex designs?

Yes, it excels at creating intricate designs. You can use it to produce molds with overhangs, undercuts, and fine details. This capability makes it ideal for industries requiring custom and complex components.

What materials work best for molds in ultra-precision CNC machining?

Metals like stainless steel and specialty alloys are common choices. Non-metal materials like ABS and PC also work well for unique mold requirements. These materials support tight tolerances and ensure durability.

How does surface finishing improve mold performance?

Surface finishing enhances mold durability and functionality. Techniques like polishing and electroplating reduce friction, improve sealing, and extend the mold's lifespan. You can achieve smoother surfaces, which minimize wear during production.
