Precision injection mold design plays a vital role in manufacturing high-quality medical devices, with several critical factors influencing the process. Every detail in the design development process impacts the performance and safety of the final products. Poor design choices can lead to significant challenges, including compliance failures, costly recalls, and reduced production efficiency. For example, a leading manufacturer faced a $1.2 million loss after recalling 50,000 surgical instrument housings due to flawed gate design. Investing in precision saves up to $12 for every $1 spent by reducing defects and rework. Collaboration with experts early in the process ensures optimization and consistent quality, setting your products up for success from production startup to delivery.
Choosing the right material is one of the most critical steps in injection molding design for medical devices. The material you select directly impacts the performance, safety, and compliance of the final product. By following proper guidelines, you can ensure that the material meets the stringent requirements of the medical industry while maintaining high quality and cleanliness standards.
Biocompatibility is a non-negotiable factor when selecting materials for medical devices. The material must not cause adverse reactions when it comes into contact with human tissues or fluids. To identify the most suitable material for injection molding of medical products, follow these steps:
1. Define the specific requirements and constraints of the device.
2. Create a list of potential candidate materials.
3. Evaluate each material's biocompatibility.
4. Assess its mechanical and chemical compatibility with the device's intended use.
5. Consider the feasibility of manufacturing with the material.
6. Ensure compliance with regulatory standards and guidelines.
7. Conduct a thorough risk-benefit analysis.
8. Prototype and test the material.
9. Select the optimal material based on the results.
By adhering to these steps, you can ensure the cleanliness of the mold area and prevent contamination during production. This process also helps maintain the quality of the final product, which is essential for patient safety.
Every medical device has unique requirements, and the material you choose must align with these needs. Properties like tensile strength, elasticity, and biocompatibility play a significant role in determining whether a material is suitable for injection molding of medical products. For example:
- High-precision hypotubes often require materials with excellent tensile strength and elasticity to withstand repeated use.
- Medical-grade alloys and polymers are increasingly popular due to their ability to meet specific performance criteria.

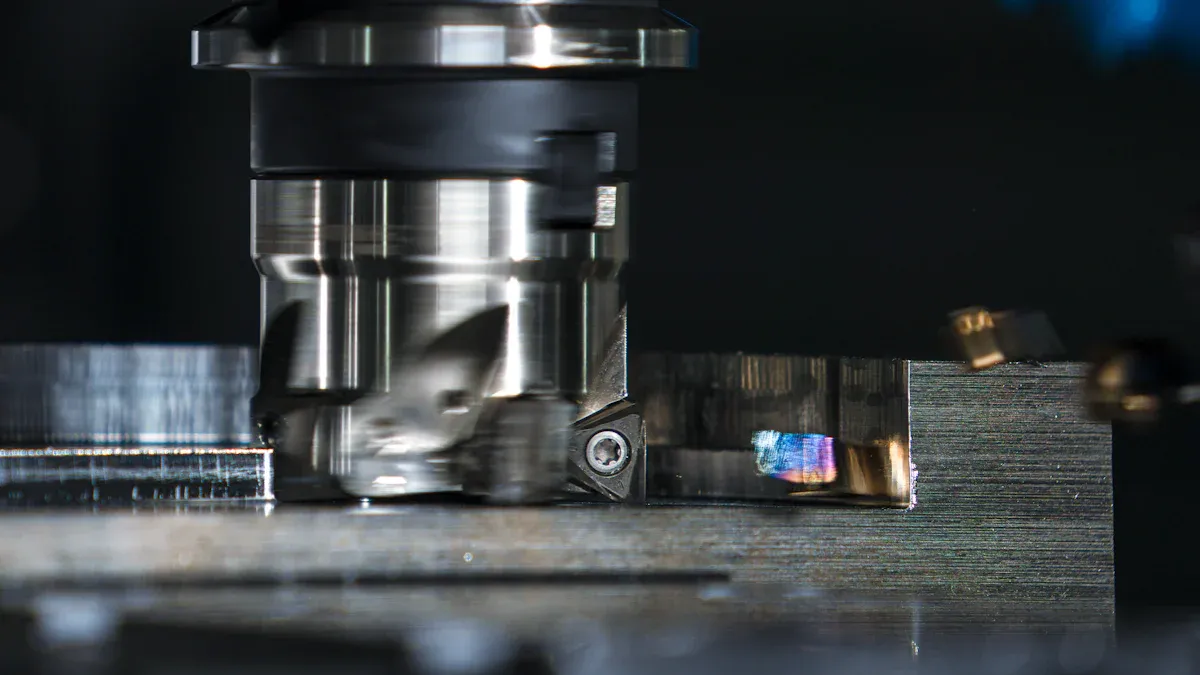

Precision machining techniques are equally important. They help minimize tolerance errors, ensuring that the material performs as expected in medical applications. By matching material properties with device requirements, you can achieve a balance between functionality and durability.
Sterilization is a critical aspect of medical device manufacturing. The material must withstand various sterilization methods, such as autoclaving, gamma radiation, or chemical treatments, without degrading. Additionally, regulatory compliance is essential to ensure the device meets industry standards. To achieve this:
- Choose materials that are compatible with the sterilization methods required for your device.
- Verify that the material complies with guidelines set by organizations like the FDA or ISO.
- Regularly test the material to ensure it maintains its integrity and cleanliness throughout the production process.
By prioritizing sterilization and regulatory compliance, you can enhance the safety and reliability of your medical devices. This approach also helps you avoid costly recalls and ensures the cleanliness of the mold area during production.
Efficient cooling system design is essential for producing high-quality medical devices through injection molding. Proper cooling ensures dimensional accuracy, prevents defects, and maintains consistent quality throughout production.
Cooling directly impacts the dimensional accuracy of molded parts. Uneven cooling can lead to defects like warping or sink marks, compromising the quality of your devices. To maintain precision:
- Use materials with high thermal conductivity in the mold to dissipate heat effectively.
- Position cooling channels close to the mold cavity for uniform heat transfer.
- Consider advanced methods like conformal cooling, which adapts to complex geometries and enhances cooling efficiency.
Research shows that optimized cooling minimizes residual stresses and deformation, ensuring your injection molding machine produces parts that meet tight tolerances.
Uniform temperature distribution is critical for consistent part quality. Cooling channels play a significant role in achieving this. A comparison of cooling methods highlights the benefits of optimization:
| Cooling Method | Temperature Difference | Benefits |
|---|---|---|
| Traditional Steel Insert | 0 °F | Standard cooling, less flexibility |
| High Conductivity Insert | 17 °F cooler | Improved temperature distribution |
| Conformal Cooling Insert | 17 °F cooler | Uniform temperatures without high conductivity materials |
By designing cooling channels that match the mold's geometry, you can reduce cycle times and improve the overall efficiency of your injection molding machine.
Warping and other defects often result from uneven cooling. To prevent these issues, focus on:
- Balancing the cooling rate across the mold cavity.
- Using simulation tools to predict and address potential hot spots.
- Regularly maintaining your injection molding machine to ensure consistent performance.
Effective cooling not only prevents defects but also enhances the durability and reliability of your devices. This approach ensures that your products meet the highest quality standards while maintaining production efficiency.
Proper venting plays a crucial role in preventing defects during the injection molding process. When air or gases become trapped in the mold cavity, they can cause issues like burn marks, short shots, or poor surface finishes. You can avoid these problems by designing vents that allow trapped gases to escape efficiently. Positioning vents at the right locations ensures smooth material flow and reduces the risk of defects. Regular maintenance of the injection molding machine also helps keep vents clear of residue buildup, which can compromise quality.
Managing trapped gases effectively requires a combination of design strategies and operational practices. One common technique involves using micro-vents or porous inserts in the mold. These features allow gases to escape without affecting the integrity of the molded part. Another approach is to adjust the injection speed and pressure of the injection molding machine. Slower speeds and lower pressures can reduce the likelihood of gas entrapment. Additionally, using simulation software to analyze gas flow within the mold can help you identify and address potential problem areas before production begins.
Smooth surface finishes are essential for medical devices, as they ensure patient safety and enhance the device's functionality. Proper venting is key to achieving these finishes. Insufficient venting can lead to a range of quality issues, as shown in the table below:
| Quality Issues Related to Insufficient Venting |
|---|
| Burn marks |
| Short shots |
| Insufficient packing |
| Poor surface definition |
| Internal voids |
| Weak weld lines |
| Dimensional variation |
| Splay |
| Gloss |
| Material degradation |
| Warpage |
| Plate-out |
| Residue build-up in the vents |
| Dead spots |
| Parts sticking or abrading upon ejection |
By addressing these issues through proper venting, you can improve the overall quality of your products. Regularly inspecting and maintaining the injection molding machine ensures vents remain effective, helping you produce defect-free parts with consistent surface finishes.
Precision is the cornerstone of medical device production, and achieving tight tolerances is critical to ensuring the functionality and safety of your products. Injection molding machine settings, material properties, and mold design all play a role in maintaining dimensional accuracy. By focusing on these factors, you can produce components that meet the stringent requirements of the medical industry.
Medical devices often require tight tolerances to function correctly and safely. Dimensional deviations, even as small as 0.5%, can compromise the performance of critical components. To meet these tolerances, you must implement robust quality control measures and use advanced tools like GD&T (Geometric Dimensioning and Tolerancing). GD&T ensures that each part meets precise geometric relationships, which is essential for proper assembly and functionality.
Key characteristics measured during dimensional inspection include:
- Length, width, and height.
- Angles and geometric features.
- Surface flatness and roundness.
Dimensional inspection methods fall into several categories:
- First Article Inspection.
- Quality Control.
- Regulatory Compliance.
- High-Precision Engineering.
The table below highlights typical benchmarks for dimensional accuracy in medical device components:
| Component Type | Material | Dimensional Deviation (%) | Standard Deviation (max) |
|---|---|---|---|
| Circular | PLA | 0.5% - 1.5% | 0.05 |
| PETG | 1% - 2.5% | N/A | |
| TPU | 2% - 3.5% | N/A |
By adhering to these benchmarks, you can ensure your injection molding machine produces parts that meet critical tolerances, reducing the risk of defects and ensuring consistent quality.
Shrinkage and deformation are common challenges in injection molding, especially for complex medical devices. These issues often arise due to uneven cooling or improper mold design. To minimize these problems, you should focus on optimizing the cooling system and adjusting wall thicknesses.
A case study demonstrated how redesigning cooling channels and modifying wall thickness significantly reduced shrinkage variation in a complex-shaped product. This highlights the importance of thoughtful mold design in achieving dimensional stability.
Simulation tools can also help you predict and address potential shrinkage issues before production begins. By analyzing material flow and cooling patterns, you can make informed adjustments to your injection molding machine settings, ensuring uniform cooling and reducing the likelihood of deformation.
Multi-cavity molds are often used in medical device production to increase efficiency and reduce costs. However, maintaining precision across multiple cavities can be challenging. Variations in temperature, pressure, or material flow can lead to defects like warpage or dimensional inconsistencies.
The cooling stage is particularly critical in multi-cavity molds. Non-uniform temperature distribution can cause significant issues, such as shrinkage or warpage, which compromise the quality of your components. To address this, you should:
- Use advanced cooling techniques like conformal cooling.
- Regularly calibrate your injection molding machine to ensure consistent performance.
- Monitor each cavity for temperature and pressure variations.
Precision is vital in medical device manufacturing. Even minor deviations in size or shape can lead to product failures, posing risks to patient safety. By prioritizing precision in your mold design and production processes, you can produce high-quality components that meet the rigorous standards of the medical industry.
Efficient gate and runner placement is essential for producing high-quality medical devices. These components control how molten plastic flows into the mold cavity, directly impacting the performance and consistency of the final product. Proper placement reduces defects, optimizes material flow, and ensures the injection molding machine operates efficiently.
Choosing the correct gate type is crucial for achieving consistent results in medical device production. The gate type influences how molten plastic enters the mold, affecting the part's structural integrity and surface finish. Experienced injection molders play a vital role in this process. They can identify design flaws that impact gate types and locations. Their expertise ensures the final product meets the high standards required for medical applications.
Key performance metrics justify the selection of specific gate types:
- Consistency in part dimensions.
- Enhanced surface quality.
- Improved application performance.
Early collaboration with molders leads to better design decisions, ensuring your injection molding machine produces reliable and high-performing medical devices.
Runner systems guide molten plastic from the injection molding machine to the mold cavity. Optimizing these systems enhances material flow and minimizes waste. Hot runner systems, for example, eliminate runner waste by delivering molten plastic directly into the mold cavity. Valve-gated hot runners provide precise injection control, reducing pressure fluctuations and ensuring uniform filling.
Temperature control in runner design is another critical factor. Precise temperature management minimizes defects, optimizes flow, and enhances the structural integrity of the final product. A balanced runner layout ensures uniform distribution of molten plastic across mold cavities. This approach reduces defects like shrinkage and warping, improving part quality and production efficiency.
Reducing waste is a priority in medical device manufacturing. Optimized runner systems, such as hot runners, significantly cut material waste by eliminating the need for trimming excess plastic. Additionally, advanced manifold designs distribute polymer evenly, minimizing defects and ensuring consistent quality.
Uniform material flow not only reduces waste but also enhances the reliability of your injection molding machine. By focusing on efficient gate and runner placement, you can achieve consistent results, lower production costs, and maintain the high standards required for medical devices.
Smooth finishes on medical devices are essential for patient safety. Surface irregularities can cause discomfort or harm during medical procedures. You can achieve smooth finishes by using advanced surface finishing techniques that eliminate defects and ensure uniformity. Measurements like Ra and Rz help evaluate surface quality.
| Standard | Description | Importance in Patient Safety |
|---|---|---|
| Ra | Arithmetic average roughness, indicating average surface deviation. | May not capture critical surface defects. |
| Rz | Mean roughness depth, measuring peak-to-valley height. | Provides a comprehensive view of surface irregularities, crucial for ensuring device safety. |
Smooth finishes also enhance durability, protect against wear, and improve corrosion resistance. These qualities safeguard devices from environmental degradation, ensuring their reliability during use. Functional enhancements, such as better electrical conductivity or friction characteristics, further contribute to device performance.
Texturing on medical device surfaces offers both functional and aesthetic advantages. Microstructured surfaces improve biological responses, reducing fibrous capsule density by over 50% compared to flat surfaces within four weeks. Polarized light microscopy confirms that textured surfaces reduce collagen near the tissue layer, enhancing fibroblast viability and minimizing capsular contracture.
Textured surfaces also improve device functionality. They enhance grip, reduce glare, and improve tactile feedback, making devices easier to handle. Aesthetic benefits include improved visual appeal, which can boost patient confidence in the device. Quantitative analyses show that textured surfaces outperform flat ones in both biological and practical applications, demonstrating their value in medical device design.
Maintaining surface quality during production requires careful mold design and regular inspection of your injection molding machine. Defects like scratches or uneven finishes can compromise device performance. You can prevent these issues by using high-quality molds and optimizing machine settings.
Regular maintenance of your injection molding machine ensures consistent surface quality. Cleaning molds and inspecting for wear helps avoid contamination and ensures smooth finishes. Advanced simulation tools can predict potential surface defects, allowing you to address them before production begins. By prioritizing surface quality, you can produce reliable devices that meet stringent medical standards.
Efficient ejection systems are essential for producing high-quality medical devices. They ensure parts are removed from the mold without damage, maintain consistent quality, and improve production efficiency. By focusing on ejection system design, you can enhance the performance of your injection molding machine and reduce production challenges.
Parts can sustain damage during ejection if the system is not properly designed. Scratches, dents, or deformation often occur when the ejection force is uneven or excessive. To prevent these issues, you should use automated ejection systems. These systems apply consistent force, reducing the risk of damage. Additionally, incorporating ejector pins or sleeves in the mold design ensures parts are released smoothly. Regular maintenance of your injection molding machine also helps keep the ejection system functioning optimally, minimizing wear and tear that could harm parts.
Uniform ejection is critical for maintaining consistent quality across production cycles. When parts are ejected evenly, they retain their shape and dimensions, meeting the stringent standards required for medical devices. Automated ejection systems play a key role in achieving this consistency. They ensure swift and precise ejection, reducing the likelihood of defects. Other benefits include:
- Enhanced productivity through faster cycle times.
- Reduced risk of part damage during ejection.
- Improved overall quality of molded components.
By prioritizing uniform ejection, you can ensure your injection molding machine produces reliable and high-performing medical devices.
Optimized ejection systems significantly reduce cycle times, boosting production efficiency. Automated systems streamline the ejection process, allowing your injection molding machine to operate at maximum capacity. For example, using air-assisted ejection or spring-loaded mechanisms can speed up part removal without compromising quality. Shorter cycle times not only increase output but also lower production costs. This efficiency ensures you can meet high demand while maintaining the quality of your medical devices.
Undercuts and intricate geometries often complicate the injection molding process. These features can make it difficult to release parts from the mold, leading to delays and defects. To overcome this challenge, you can use side actions or collapsible cores. These tools allow the mold to release parts with complex shapes without damaging them. Another effective strategy is to redesign the part to eliminate unnecessary undercuts. Simulation software can help you predict potential issues and refine your design before production begins. By addressing these challenges early, you ensure smoother operations and higher-quality parts.
Flash, a thin layer of excess material on the edges of molded parts, is a common defect in injection molding. It occurs when molten plastic escapes the mold cavity due to improper clamping or worn-out mold components. To prevent flash, you should regularly inspect and maintain your injection molding machine. Ensure the mold closes tightly and that all components are in good condition. Adjusting the injection pressure and temperature can also help reduce the risk of flash. By taking these steps, you improve the quality of your parts and minimize waste.
Balancing cost, quality, and production speed is a constant challenge in medical device manufacturing. High-quality parts often require more time and resources, which can increase costs. To strike the right balance, you should optimize your injection molding machine settings for efficiency. Use high-quality materials that meet your device's requirements without being overly expensive. Collaborate with experienced molders to refine your design and streamline production. By focusing on these factors, you can produce reliable devices while keeping costs under control and meeting tight deadlines.
Working with molders early in the process can significantly improve your results. Early collaboration allows you to refine design parameters and address potential challenges before production begins. This approach enhances product quality and shortens development cycles. Advanced tools like CT analysis and simulation techniques enable iterative feedback, helping you optimize designs efficiently. Upfront analysis during the design phase can save up to 40% of the total development cycle. By involving molders early, you connect different teams, streamline processes, and ensure better outcomes for your medical devices.
Molders bring valuable expertise to the table, especially in precision injection mold design. Their experience helps you identify potential flaws and optimize your injection molding machine settings. For example, molders can recommend adjustments to cooling systems or gate placements to improve material flow and reduce defects. They also understand how to balance cost and quality effectively. By leveraging their knowledge, you can create molds that meet the stringent requirements of medical devices while maintaining production efficiency. This collaboration ensures your products achieve the highest standards of quality and reliability.
Strong partnerships with molders lead to long-term success in medical device manufacturing. A trusted molder becomes an extension of your team, providing ongoing support and insights. Regular communication ensures your injection molding machine operates at peak performance, producing consistent, high-quality parts. These partnerships also foster innovation, as molders can introduce you to new technologies and techniques. By building strong relationships, you create a foundation for continuous improvement and sustained success in your production processes.
Precision in mold design is the foundation of successful medical device manufacturing. Strategic planning and attention to detail ensure your injection molding machine operates efficiently, producing high-quality devices. However, many organizations struggle with execution, as 90% of strategic plans fail, and 50% remain unimplemented. Specifying materials early and selecting the right resin can save costs and maintain tolerances, directly impacting mold quality.
Strong quality systems double the likelihood of meeting compliance goals, as highlighted in industry reports. Yet, 43% of manufacturers still rely on outdated tools, risking their ability to meet stringent standards. By collaborating with molders and leveraging modern solutions, you can bridge the gap between strategy and execution. Prioritize quality and compliance to achieve consistent success in your injection molding processes.
An injection molding machine melts and injects plastic into a mold to create precise medical device components. It ensures consistent quality and dimensional accuracy, which are critical for patient safety and device functionality.
Mold design determines the shape, structure, and surface finish of medical devices. A well-designed mold ensures high-quality parts by preventing defects like warping, flash, or dimensional inaccuracies. It also improves production efficiency and reduces waste.
Cooling ensures uniform temperature distribution in the mold, which prevents defects like warping or shrinkage. It also maintains the quality of the molded parts and reduces cycle times, improving overall production efficiency.
You can prevent defects by optimizing the injection molding machine settings, maintaining the mold, and ensuring proper venting and cooling. Regular inspections and simulations also help identify and address potential issues before production.
Early collaboration with molders helps refine the mold design, optimize injection molding machine settings, and address potential challenges. This ensures high-quality medical devices, reduces production costs, and shortens development cycles.
